Description

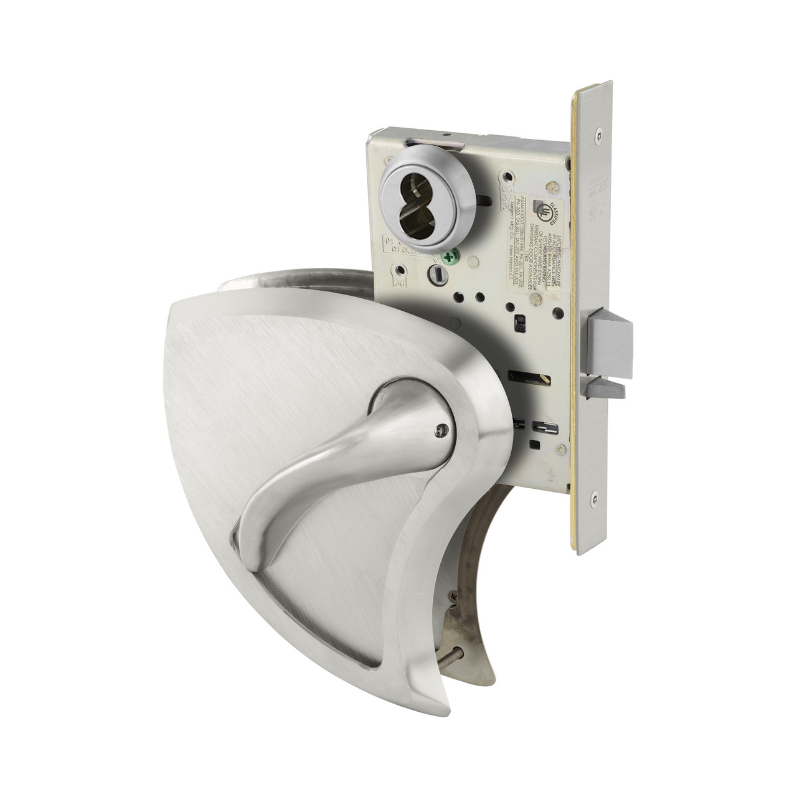

Sargent 70-8204-BHW-US32D Behavioral Health Storeroom Function Mortise Lock, Key Retracts Latch, BHW Trim, Accepts SFIC Prep, Less Core, Field Reversible, 630 Satin Stainless Steel
The Sargent 70-8204-BHW-US32D Behavioral Health Mortise Lock features a storeroom function with a key that retracts the latch. It includes BHW trim, accepts SFIC preparation, comes without a core, and is field reversible. Finished in satin stainless steel (630), this lock is designed for reliable performance in behavioral health environments.
- Storeroom Function:
- Key outside retracts latchbolt
- Trim outside locked at all times
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Key outside retracts latchbolt
- Uses standard mortise prep
- SFIC Less Core
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 04 Storeroom Function |
| ANSI Function |
F07 - Storeroom/Exit |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type | SFIC Less Core |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
