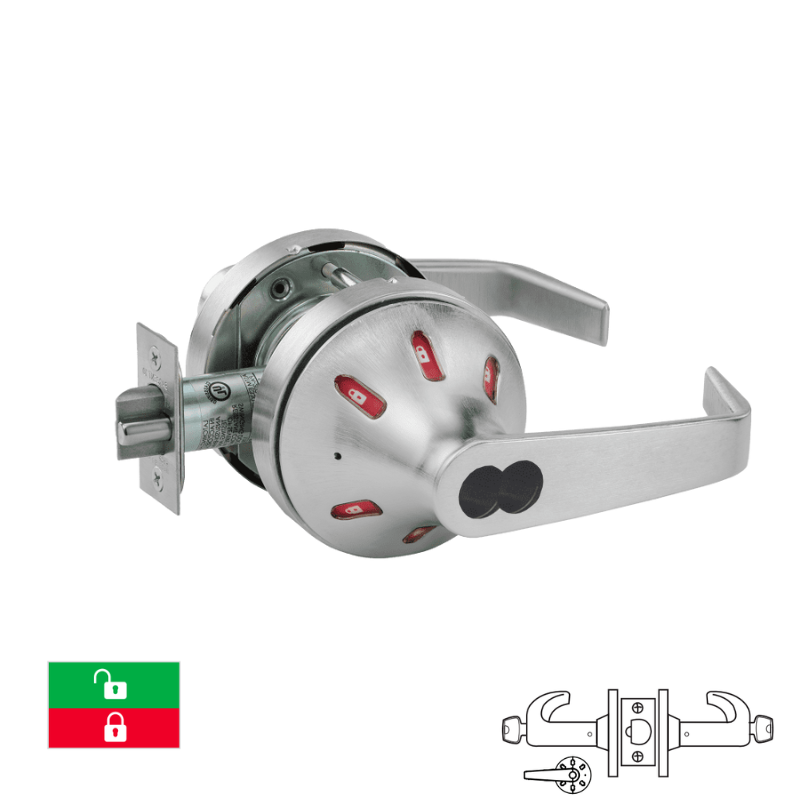

Sargent 70-V03-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V03-10XG38-VSLL delivers institutional-grade security with classroom-specific functionality. This Grade 1 cylindrical lock features an intruder function that allows authorized personnel to override locked doors during emergencies while maintaining visual status indicators—green for unlocked, red for secured—visible only from inside. The SFIC (Small Format Interchangeable Core) design enables quick rekeying without removing the lock body. With a 2 3/4" backset and 4 7/8" strike, it accommodates standard door preparations. The lever-operated mechanism and durable construction make it ideal for educational environments requiring both accessibility and security control.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
