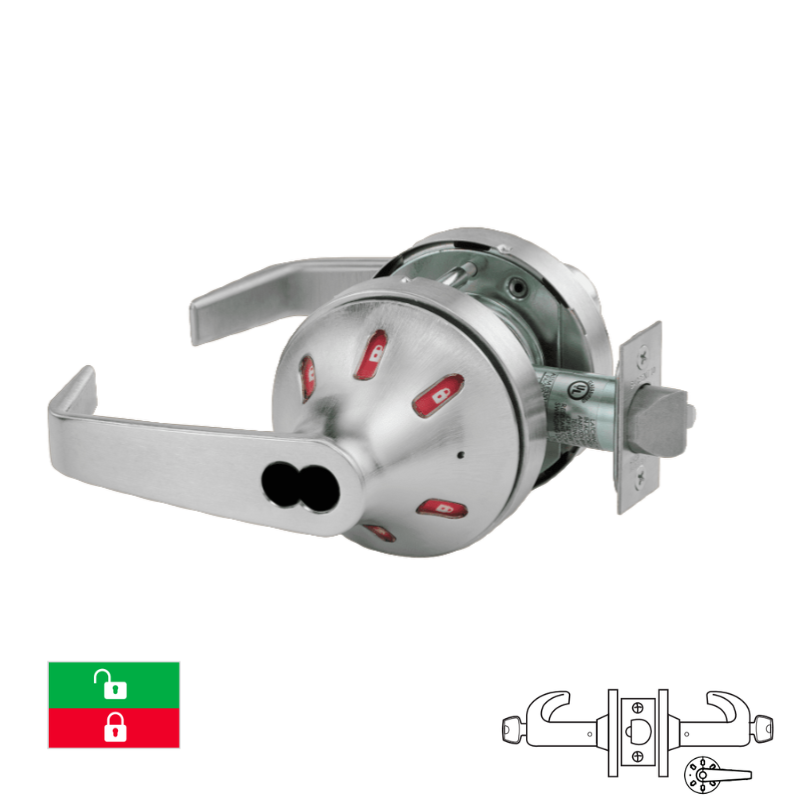

Sargent 70-V30-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V30-10XG38-VSLL is a Grade 1 cylindrical lock engineered for classroom security applications. This intruder function lock features a visual indicator trim accessible from the outside only, displaying green and red status indicators for quick occupancy verification. The lever design provides ergonomic operation, while the SFIC (Small Format Interchangeable Core) mechanism allows for convenient key management without removing the lock body. With a 2 3/4" backset and 4 7/8" strike, it integrates seamlessly into standard door frames. Supplied less core for flexible configuration to your security specifications.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
