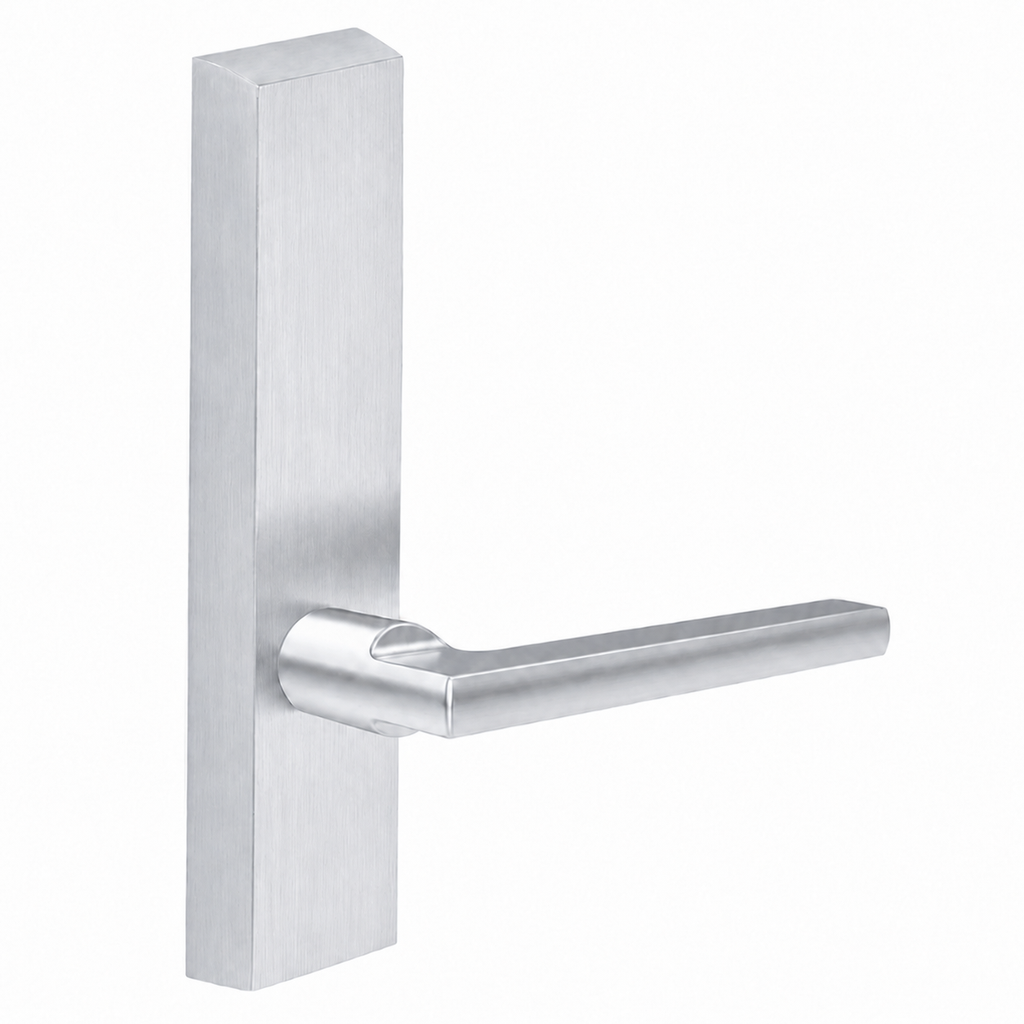

Sargent 710-ETMD Dummy Lever, ET MD Lever Trim, Non-Keyed, For 8700, 8810, 8888, 8900, Series Exit Devices, Grade 1
The Sargent 710-ETMD dummy lever trim is a non-keyed exterior trim designed for use with Sargent 80 Series exit devices, including 8700, 8810, 8888, and 8900 series applications. Built for commercial openings that require a matching pull-side lever without latch retraction, this trim provides a clean, durable solution for doors where operation from the trim side is not needed. The ET/MD lever design delivers a professional appearance while maintaining compatibility with Sargent Grade 1 exit device systems. It is well suited for institutional, educational, healthcare, and other high-traffic environments where dependable hardware and coordinated door aesthetics are important.
Features
- Non-keyed dummy lever trim for Sargent 80 Series exit devices.
- Compatible with 8700, 8810, 8888, and 8900 series exit devices.
- ET/MD lever style provides a coordinated appearance on the pull side of the door.
- Designed for applications where no outside operation or latch retraction is required.
- Commercial-grade construction supports demanding institutional and high-traffic openings.
- Made to pair with Grade 1 exit device installations.
- Ideal for doors requiring fixed trim for appearance or pull function only.
Functional Details
This dummy trim is intended for doors that need a matching exterior lever but do not require active operation from that side. It mounts to the outside of the door and provides a fixed lever presentation to complement the associated exit device while leaving the latching function controlled by the device configuration on the secure side.
- Dummy trim
- Non-keyed
- For use with 80 Series exit devices
Included Components
The trim is supplied as an exterior dummy lever assembly for compatible Sargent 80 Series exit device applications. Device and additional exit hardware components are ordered separately unless otherwise specified.
| Manufacturer | Sargent |
|---|---|
| Base SKU | 710-ETMD |
| Product Type | Dummy Lever Trim |
| Series Compatibility | 80 Series Exit Devices |
| Compatible Devices | 8700, 8810, 8888, 8900 Series |
| Operation | Non-Keyed Dummy |
| Lever Design | ET/MD |
| Grade | ANSI/BHMA Grade 1 |
| Unit of Measure | Each |
| Application | Exterior trim for exit devices where outside operation is not required |
| Door Type | Commercial exit device openings |
| Manufacturer | Sargent |
|---|---|
| Model | 710 |
| Trim Design | ETMD |
| Function | Dummy |
| Keying | Non-keyed |
| Device Series | 80 Series |
| Compatible Series 1 | 8700 |
| Compatible Series 2 | 8810 |
| Compatible Series 3 | 8888 |
| Compatible Series 4 | 8900 |
| ANSI/BHMA Grade | 1 |
