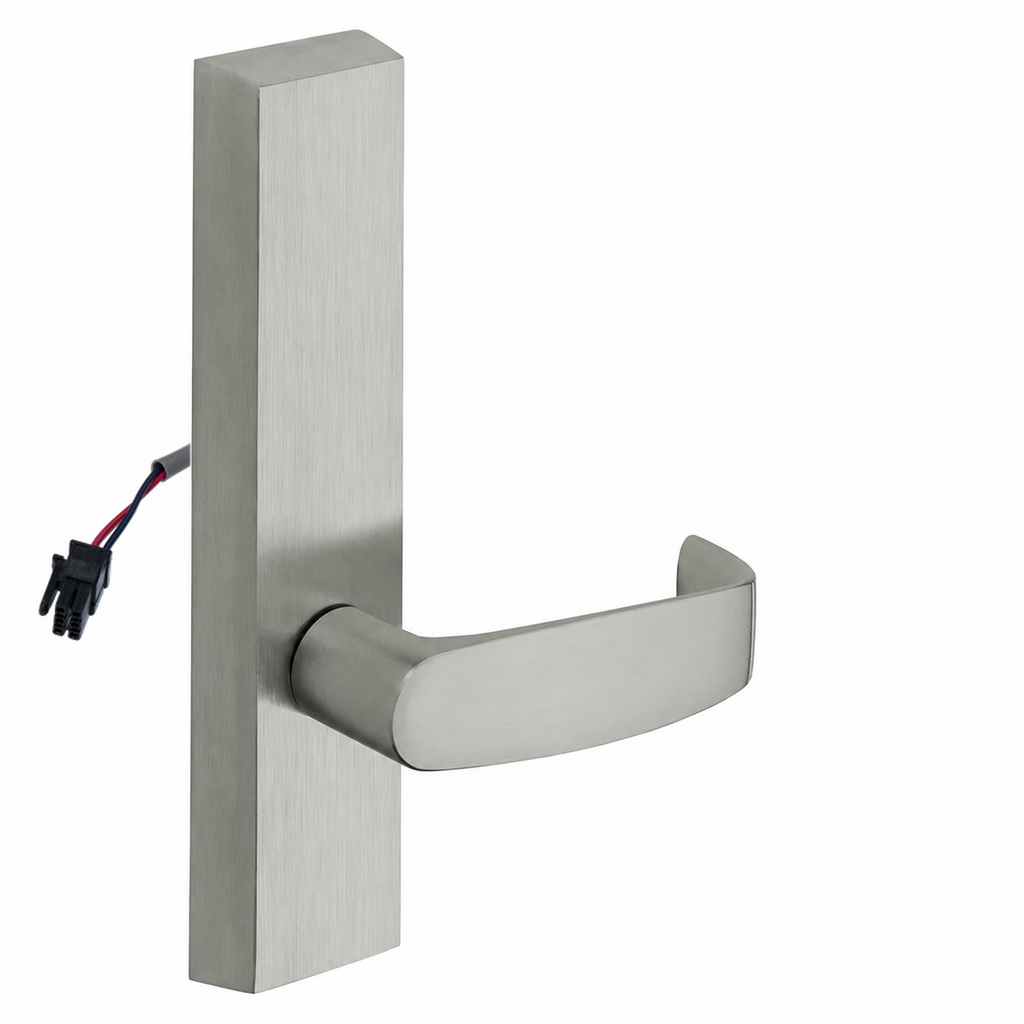

Sargent 773-8-ETL-24V Electrified Lever Trim, "ET" L Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETL-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled entry on doors that require electrified outside trim. This trim features the "ET" L lever design, supports Fail Safe/Fail Sec operation, and accepts 10.2V-26.4V input for flexible power compatibility. Built for dependable integration with listed Sargent exit device series, the 773-8-ETL-24V configuration is supplied with no cylinder, making it a practical choice for applications where cylinder trim is not required or will be specified separately.

Features

• Sargent 773-8-ETL-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" L lever design for a consistent operating style and appearance.
• Fail Safe/Fail Sec capability allows the trim to be configured to match the opening’s access control requirements.
• The unit operates on 10.2V-26.4V for broad voltage compatibility.
• This model is supplied with no cylinder.

Functional Details

This electrified trim allows remote control of the outside lever through an access control system while maintaining compatibility with Sargent exit devices. The Fail Safe/Fail Sec function provides flexibility in how the trim responds during power loss or energizing, depending on the application requirements and wiring setup.

• Field reversible handing
• Fail safe or fail secure
• Solenoid operated
• Voltage: 12 or 24VDC
• Current draw: 0.25 amp @ 24VDC, 0.50 amp @ 12VDC

Included Components

This configuration includes the Sargent 773 electrified lever trim with "ET" L lever for use with 8800, 8888, 8500, and NB8700 Series exit devices. It is supplied with no cylinder.
