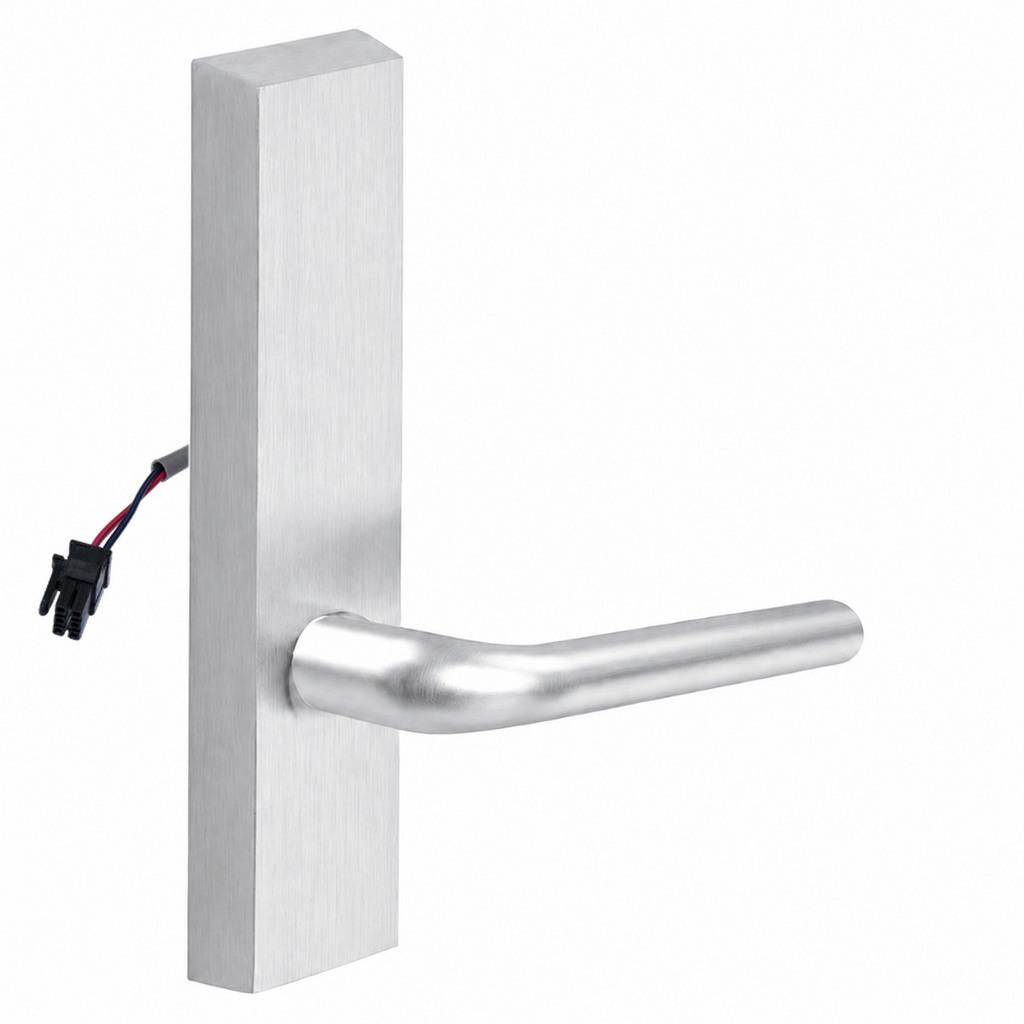

Sargent 773-8-ETME-12V Electrified Lever Trim, "ET" ME Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETME-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and provides controlled outside access with a clean, cylinder-free configuration. This trim features the "ET" ME lever design and supports both fail safe and fail secure operation, giving added flexibility for electrified openings. Rated for 10.2V-26.4V operation, the 773-8-ETME-12V trim is built to integrate with compatible Sargent exit device applications while delivering dependable performance and code-oriented access control functionality. The no cylinder design is ideal for openings where keyed control is not required at the trim.

Features

• Sargent 773-8-ETME-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" ME lever style for a consistent architectural appearance.
• Electrified operation supports both fail safe and fail secure configurations.
• The unit operates across a 10.2V-26.4V voltage range.
• This version is supplied with no cylinder.

Functional Details

This electrified trim allows the outside lever to be controlled through an electrical signal while maintaining compatibility with Sargent exit device assemblies. Depending on the application requirement, the trim can be configured for fail safe or fail secure behavior to support access control and life safety needs.

• Field selectable for either fail safe or fail secure operation.
• Operates on 12 or 24 volt DC power.
• For use with 80 Series exit devices.

Arm Type Details

This product is an electrified lever trim configuration rather than a door closer arm assembly. Its function centers on electrically controlling the outside lever trim used with compatible exit devices.

Included Components

This Sargent 773-8-ETME-12V electrified lever trim is supplied as trim only in a no cylinder configuration for use with compatible 8800, 8888, 8500, and NB8700 Series exit devices.
