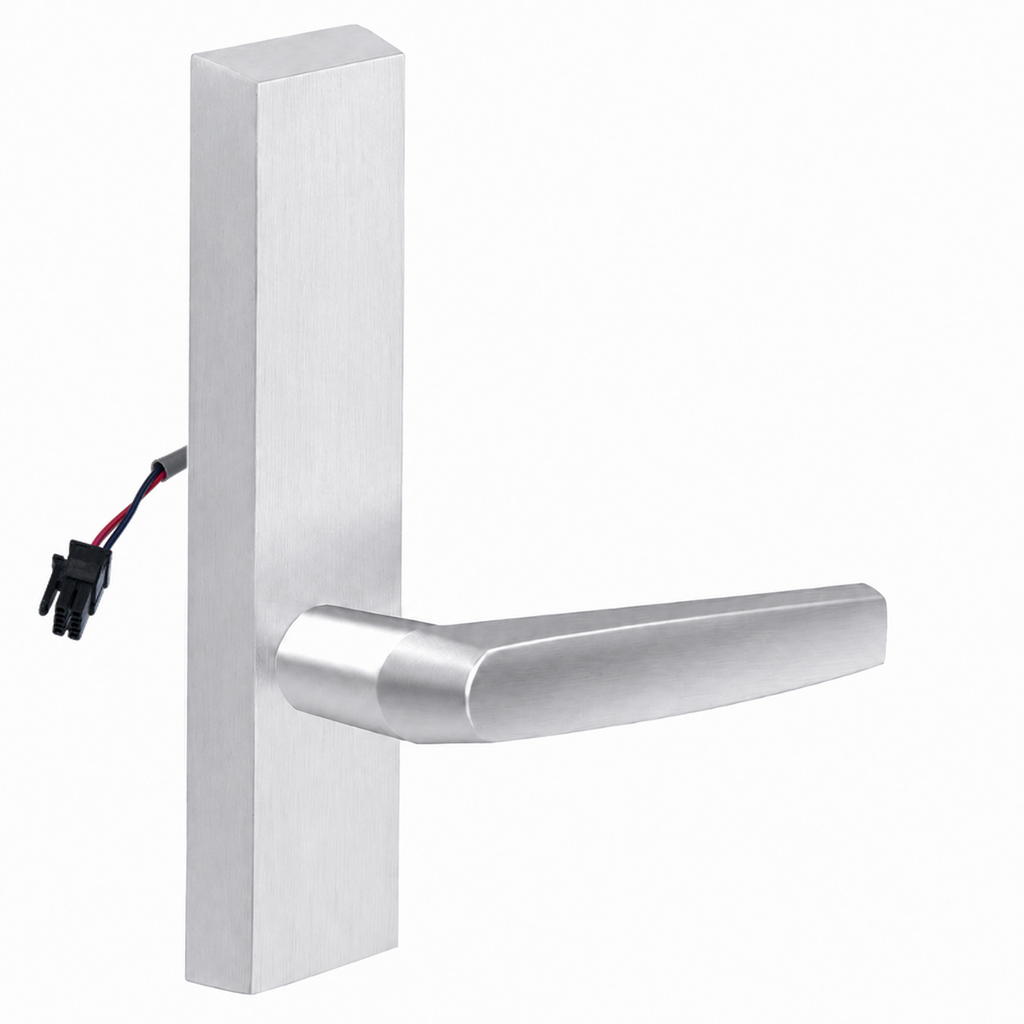

Sargent 773-8-ETMJ-12V Electrified Lever Trim, "ET" MJ Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETMJ-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, delivering controlled outside access in a durable trim package. This configuration features the "ET" MJ lever design, fail safe/fail secure capability, and a 10.2V-26.4V operating range for flexible power integration. Built as a 773 electrified trim for 8 function applications and supplied with no cylinder, it is well suited for commercial openings that require dependable remote access control while maintaining compatibility with listed Sargent exit device series.

Features

• Sargent 773-8-ETMJ-12V electrified lever trim is made for compatible exit device applications requiring electric access control.
• The trim includes the "ET" MJ lever style specified in the title.
• Fail safe/fail secure operation allows the trim to be configured to suit security and life-safety requirements.
• The unit operates on 10.2V-26.4V power for broad low-voltage compatibility.
• This trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices.
• The product is supplied with no cylinder.

Functional Details

This electrified trim provides remote control of the outside lever for access-controlled openings. In fail safe mode, the trim unlocks when power is removed. In fail secure mode, the trim remains locked when power is removed. The wide 10.2V-26.4V voltage range supports common access control system requirements.

• Field selectable for fail safe or fail secure.
• Operating voltage 10.2V to 26.4V.
• Available for 8800, 8888, 8500 and NB8700 Series exit devices.

Included Components

This configuration includes the electrified lever trim assembly with the "ET" MJ lever and is supplied with no cylinder. It is intended for installation with compatible 8800, 8888, 8500, and NB8700 Series exit devices.
