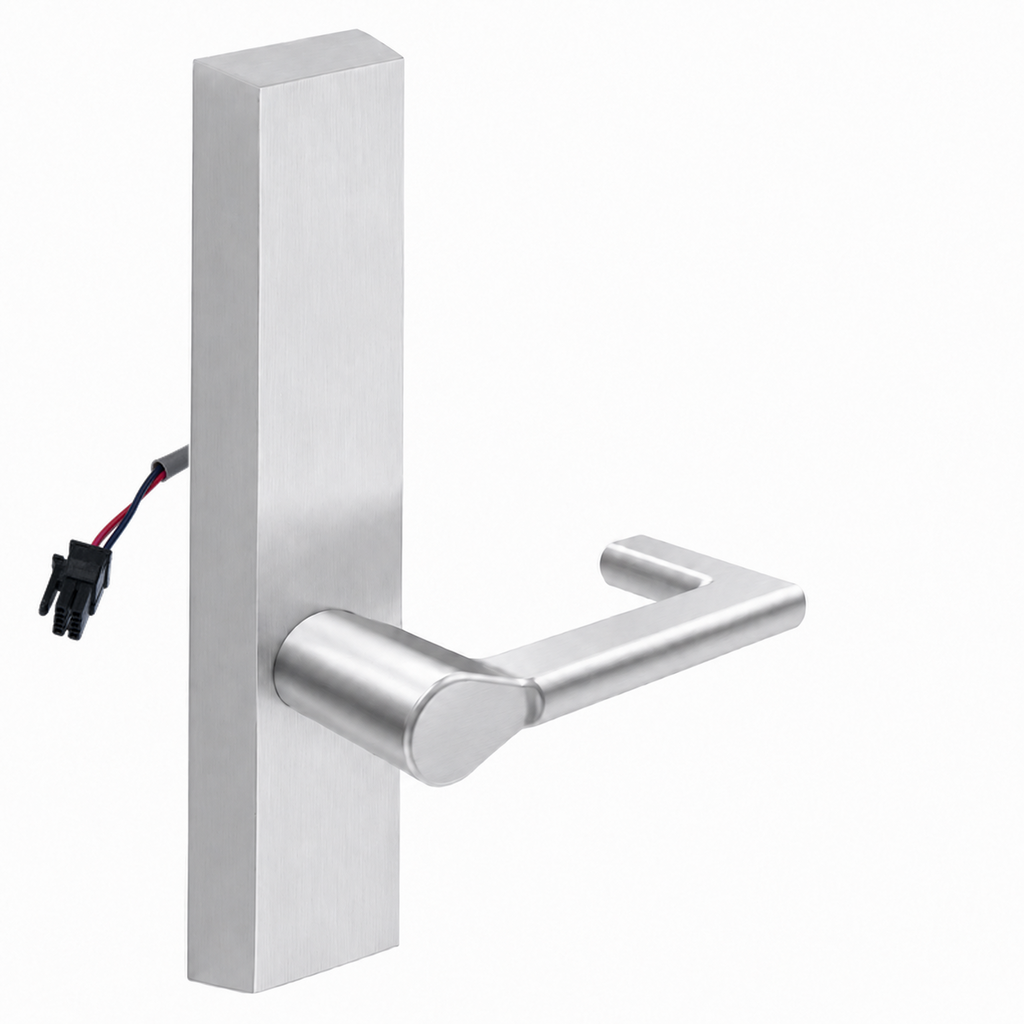

Sargent 773-8-ETND-12V Electrified Lever Trim, "ET" ND Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETND-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a durable trim package. This model features the "ET" ND lever design, supports Fail Safe/Fail Sec operation, and accepts 10.2V-26.4V input for flexible electrified openings. Built as part of the 773/774 trim offering, it is suited for applications that need dependable remote locking and unlocking at the door. This configuration is supplied with no cylinder, making it a practical choice where cylinder dogging or keyed trim is not required.

Features

• Sargent 773-8-ETND-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim uses the "ET" ND lever style.
• Electrified operation supports Fail Safe/Fail Sec configuration.
• The trim accepts 10.2V-26.4V input.
• This model is furnished with no cylinder.
• Part of the 773/774 series trim family for exit device applications.

Functional Details

This electrified trim controls the outside lever by electrical input while maintaining exit device egress on the inside. The Fail Safe/Fail Sec capability allows the trim function to be selected to match the security and life-safety requirements of the opening.

• Field selectable for fail safe or fail secure.
• Input voltage 10.2 through 26.4 VDC.
• Continuous duty solenoid.

Included Components

This configuration includes the electrified lever trim only and is specified with no cylinder.
