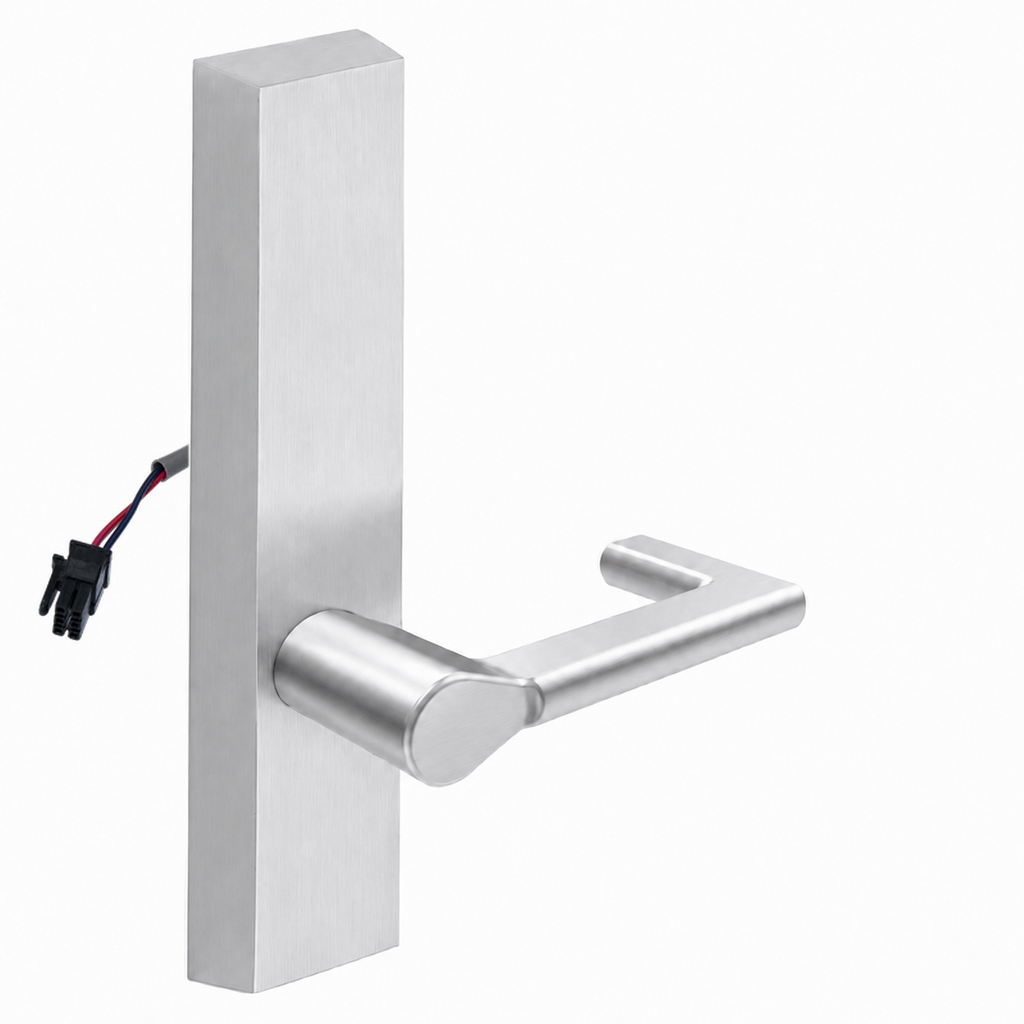

Sargent 773-8-ETND-24V Electrified Lever Trim, "ET" ND Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETND-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and provides secure, flexible access control in a no cylinder configuration. This trim features the "ET" ND lever design and supports fail safe/fail sec operation for a range of locking requirements. Built for 24V applications with an operating range of 10.2V-26.4V, the 773-8 electrified lever trim is a practical solution for commercial openings that require dependable remote control, compatibility with multiple Sargent exit device series, and clean integration with electrified door hardware systems.

Features

• Sargent 773-8 electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" ND lever design for this specific electrified trim configuration.
• Fail safe/fail sec capability allows the trim to support different access control requirements.
• The unit is rated for 24V operation with an input range of 10.2V-26.4V.
• This model is supplied in a no cylinder configuration.

Functional Details

This electrified lever trim allows remote control of the outside lever while maintaining compatibility with supported Sargent exit device series. The fail safe/fail sec capability provides flexibility for life safety and security planning, depending on how the opening is configured and powered.

• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volts DC.
• Current draw: 300 mA at 12VDC, 150 mA at 24VDC.

Included Components

This Sargent 773-8 trim is supplied as electrified lever trim only in a no cylinder configuration for use with compatible exit devices.
