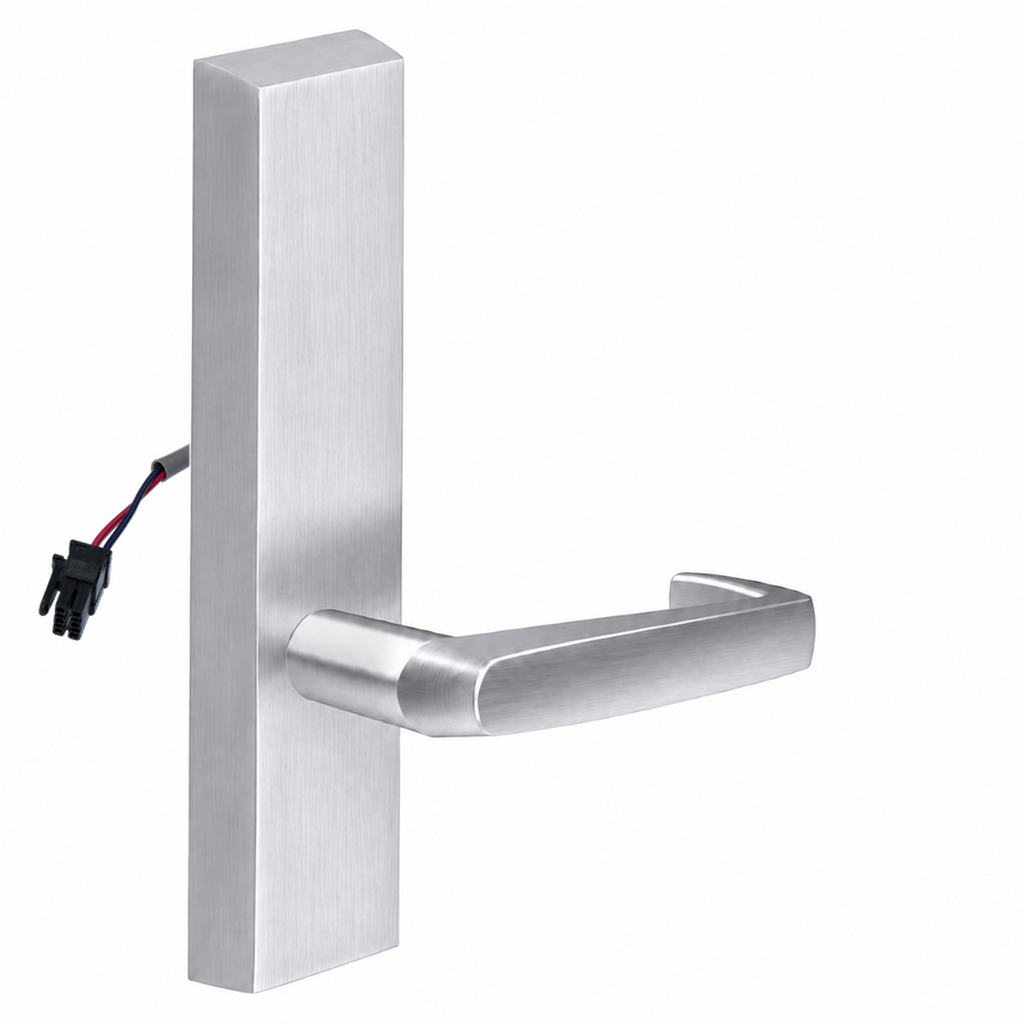

Sargent 773-8-ETNJ-12V Electrified Lever Trim, "ET" NJ Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETNJ-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a durable trim package. This model features the "ET" NJ lever design, supports both fail safe and fail secure operation, and operates on 10.2V-26.4V input. The 773-8 electrified trim is supplied with no cylinder, making it a practical choice for openings where cylinder dogging or keyed trim is not required. Built for compatibility with Sargent exit device applications, it delivers dependable electrified access control performance in commercial environments.

Features

• Sargent 773-8 electrified lever trim for compatible exit device applications.
• Equipped with the "ET" NJ lever design.
• Supports both fail safe and fail secure operation.
• Operates on 10.2V to 26.4V.
• Designed for use with 8800, 8888, 8500, and NB8700 Series exit devices.
• Supplied with no cylinder.

Functional Details

This electrified lever trim allows remote control of the outside lever on a compatible exit device. Depending on the wiring configuration, the trim can be set for fail safe or fail secure behavior to match the access control requirements of the opening while maintaining free egress through the exit device.

• Available in fail safe or fail secure.
• Operates on 12 or 24 volts DC.
• Solenoid draws 0.24 amps at 24VDC and 0.48 amps at 12VDC.
• UL Listed for use on fire doors.

Included Components

This Sargent 773-8-ETNJ-12V electrified lever trim is furnished with the trim assembly only and is specified as no cylinder. It is intended for use with compatible 8800, 8888, 8500, and NB8700 Series exit devices.
