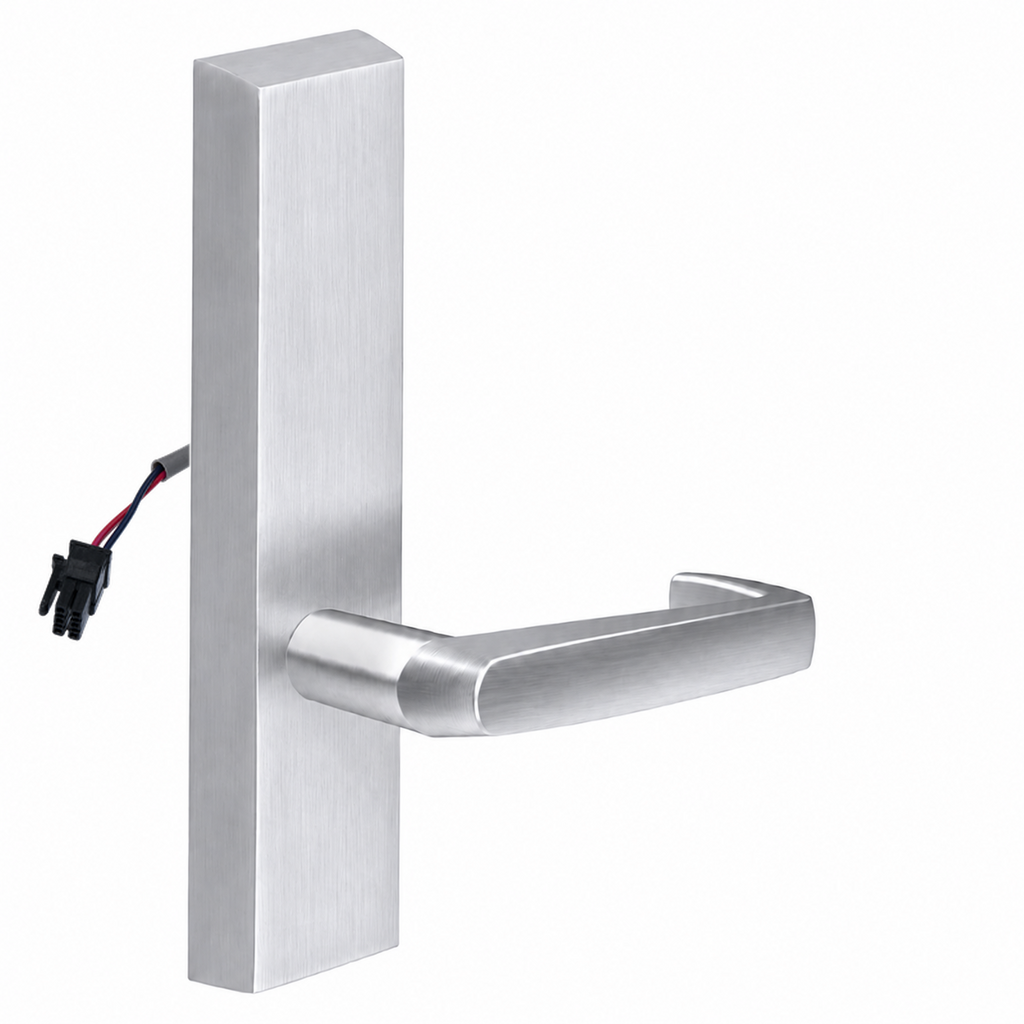

Sargent 773-8-ETNJ-24V Electrified Lever Trim, "ET" NJ Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETNJ-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled entry with the "ET" NJ lever configuration and no cylinder included. This electrified lever trim supports both fail safe and fail secure operation and accepts 10.2V-26.4V input for flexible power compatibility in new or retrofit applications. Built for dependable performance with compatible Sargent exit devices, the 773-8-ETNJ-24V trim is a practical solution when you need electrified access control, lever trim convenience, and reliable integration across multiple device series.

Features

• Sargent 773-8-ETNJ-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" NJ lever design for matching lever style and operation.
• It supports both fail safe and fail secure functionality for access control flexibility.
• The unit operates on 10.2V-26.4V power input.
• This configuration is supplied with no cylinder.
• The 773/774 electrified trim design is field selectable for fail safe or fail secure operation.
• It is intended for applications requiring electrified outside trim control with compatible Sargent exit devices.

Functional Details

This electrified lever trim controls the outside lever operation through applied power, allowing the trim to be configured in the field for either fail safe or fail secure behavior. That flexibility helps accommodate different life-safety, security, and access control requirements while maintaining compatibility with supported Sargent exit device series.

• Field selectable fail safe/fail secure.
• Operates on 12 or 24 volts AC or DC.
• Voltage range 10.2V to 26.4V.

Included Components

This trim is supplied as a Sargent 773-8 electrified lever trim with the "ET" NJ lever configuration for compatible 8800, 8888, 8500, and NB8700 Series exit devices. This specific configuration is listed as no cylinder, so a cylinder is not included.
