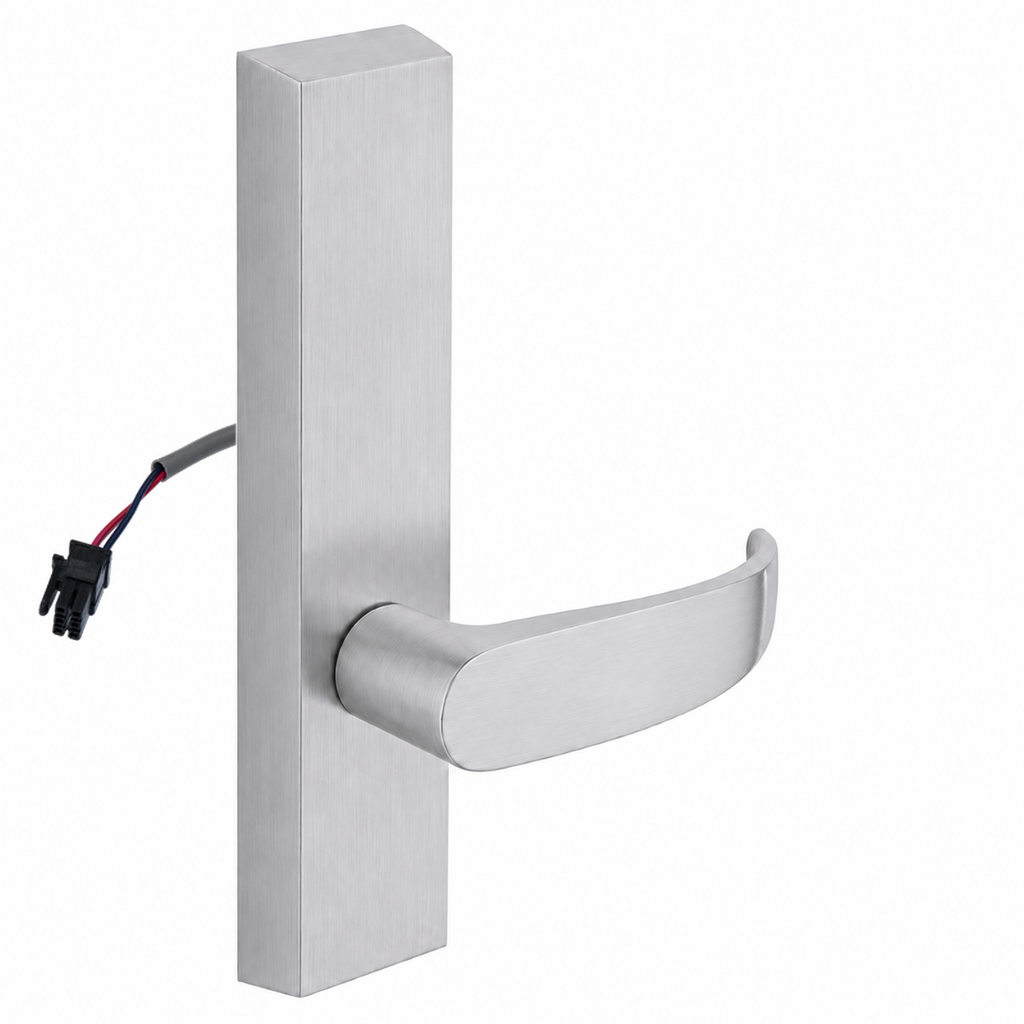

Sargent 773-8-ETP-12V Electrified Lever Trim, "ET" P Lever, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, No Cylinder

The Sargent 773-8-ETP-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside trim operation in a durable electrified package. This trim features the "ET" P lever design, supports fail safe/fail sec operation, and operates on 10.2V-26.4V. The 773-8 configuration is built for applications where remote access control is required without sacrificing dependable mechanical egress. Supplied with no cylinder, this electrified lever trim is a practical choice for facilities that need flexible locking control and compatibility with Sargent exit device platforms.

Features

• Sargent 773-8-ETP-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" P lever design for compatible outside operation.
• Fail safe/fail sec capability provides field-selectable electrical locking behavior.
• The unit operates within a 10.2V-26.4V voltage range.
• This model is supplied with no cylinder.

Functional Details

This electrified trim is used to control the outside lever through an access control system while maintaining free egress from the inside through the exit device. The fail safe/fail sec setup allows the trim function to be configured to match life safety and security requirements for the opening.

• Field reversible handing.
• Fail safe or fail secure.
• 12 or 24 volt DC.
• Solenoid draws 0.24 amp at 12VDC and 0.12 amp at 24VDC.
• For use with 80 Series exit devices.

Included Components

This Sargent 773-8-ETP-12V Electrified Lever Trim is supplied as trim only and is listed with no cylinder. It is intended for installation with compatible 8800, 8888, 8500, and NB8700 Series exit devices.
