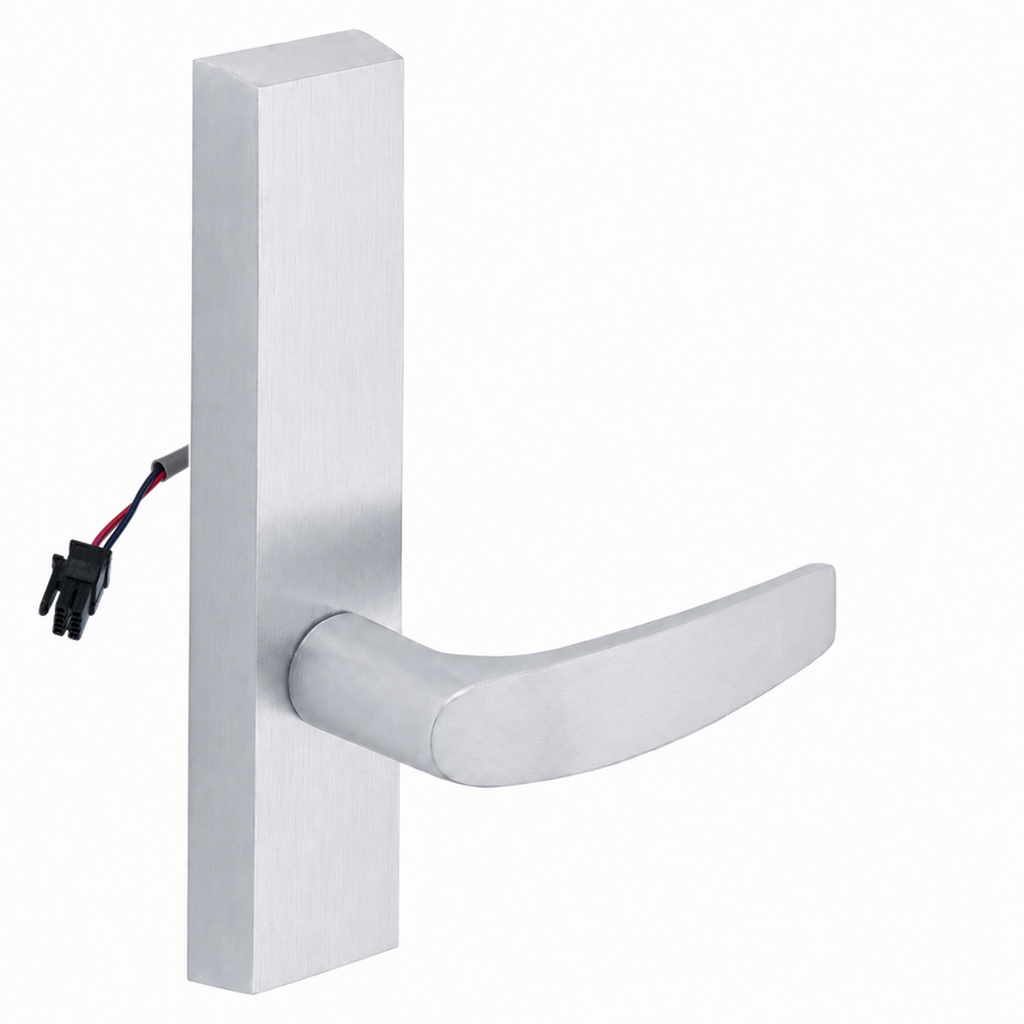

Sargent 774-8-ETB-12V Electrified Lever Trim, ET Trim with B Lever, 12V, Fail Secure, No Cylinder

The Sargent 774-8-ETB-12V electrified exit device trim is designed to provide controlled exterior access for compatible Sargent 80 Series exit devices. This ET trim features the B lever design, a 12 volt fail secure function, and is supplied without a cylinder, making it a practical choice for applications where credentialed entry is required while maintaining free egress from the inside. Built for use with select 8800, 8888, 8500, and NB8700 series devices, this trim is well suited for commercial openings that need dependable electric access control integration and durable day-to-day performance.

Features

• Electrified ET trim provides outside access control for compatible Sargent exit devices.
• Fail secure operation keeps the outside lever locked during power loss.
• Configured with the B lever design for a clean, familiar grip style.
• Operates on 12V power for access control system compatibility.
• Supplied without a cylinder for openings using electrified control without keyed trim.
• Designed for use with Sargent 8800, 8888, 8500, and NB8700 series exit devices.
• Suitable for commercial door applications requiring secure entry and safe egress.

Functional Details

This ET electrified trim uses a fail secure function, which means the outside lever remains locked when power is removed and becomes operable only when electrical power is applied. This setup is commonly used on secured openings where entry must be controlled from an access control system while allowing immediate exit from the inside through the panic hardware.

• Fail secure: outside lever remains locked until energized.
• 12 Volt operation.
• For use with 80 Series exit devices.

Included Components

This trim is supplied as an electrified outside trim with B lever configuration and no cylinder. Exit device, cylinder, and related door hardware components are ordered separately unless otherwise specified.
