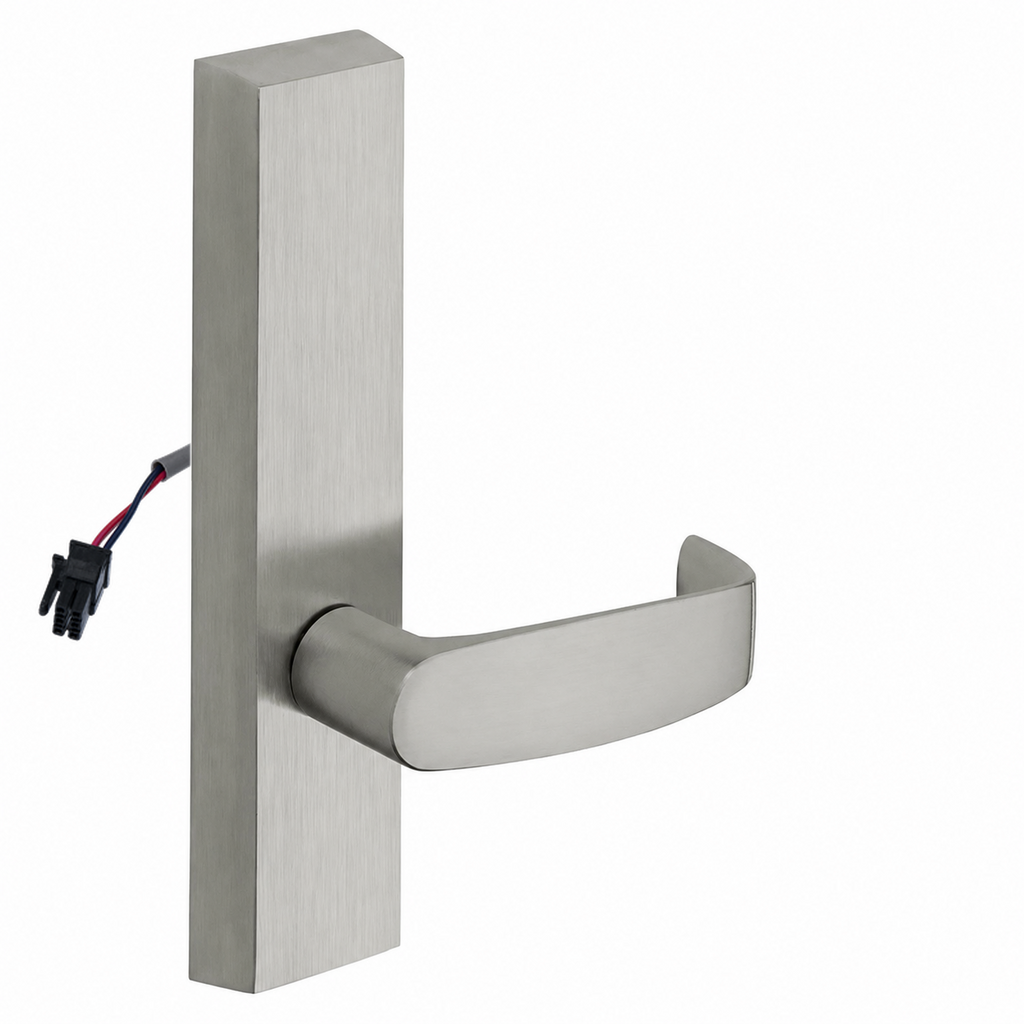

Sargent 774-8-ETL-12V Electrified Exit Device Lever Trim for 80 Series Exit Devices

The Sargent 774-8-ETL-12V electrified lever trim is a fail secure ET trim designed for use with Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series applications. This outside trim features the L lever design and operates on 12V power, making it a practical solution for controlled access openings that require remote entry while maintaining secure egress. Built for commercial door hardware applications, the 774 Series trim is engineered to integrate with compatible rim and mortise exit devices and is supplied here without a cylinder, allowing you to match the keying requirements of the opening.

Features

• Electrified ET lever trim designed for Sargent 80 Series exit devices.
• Configured with fail secure operation for controlled access applications.
• Uses 12V power for integration with access control systems.
• Supplied with the L lever style for a consistent architectural appearance.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Provided without a cylinder so the opening can be keyed as needed.
• Designed for commercial installations requiring outside trim electrification.

Functional Details

This ET electrified trim is designed to keep the outside lever locked during normal conditions in fail secure mode. When electrical power is applied through the access control system, the trim unlocks to allow authorized entry from the outside, while free egress is maintained through the exit device on the secure side of the opening.

• Fail secure.
• 12 volt operation.
• For use with 80 Series exit devices.

Included Components

This trim is supplied as an electrified outside lever trim assembly with L lever configuration and no cylinder. Cylinder and related keying components are ordered separately when required for the opening.
