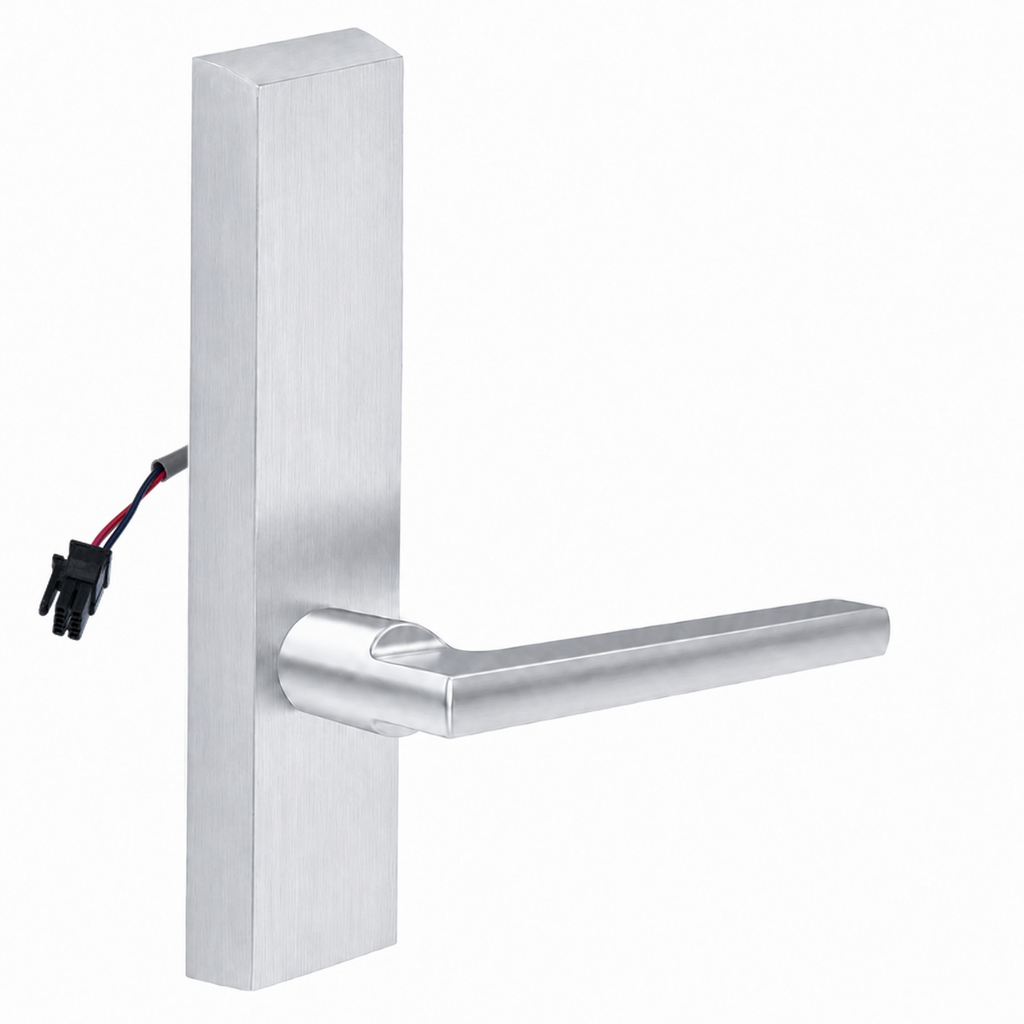

Sargent 774-8-ETMD-24V Electrified Lever Trim, ET MD Lever, Fail Secure, 24V, For 80 Series Exit Devices

The Sargent 774-8-ETMD-24V electrified exit device trim is a fail secure outside trim designed for use with Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 series models. This ET trim features the MD lever design and operates on 24V for controlled entry applications where the outside lever remains locked until electrical power is applied. Supplied without a cylinder, it is a practical choice for facilities that need dependable access control integration on rim and mortise exit device openings. Its heavy-duty construction and electrified function make it well suited for commercial and institutional door hardware applications.

Features

• Electrified ET trim is designed for controlled access with Sargent 80 Series exit devices.
• Fail secure operation keeps the outside lever locked when power is removed.
• 24V electrical configuration supports standard access control system integration.
• MD lever style provides a clean, durable lever design for commercial openings.
• Supplied without a cylinder for applications using a separately specified key cylinder.
• Compatible with 8800, 8888, 8500, and NB8700 series exit devices.
• Built for commercial and institutional openings requiring secure outside trim control.

Functional Details

This ET electrified trim is designed to control the outside lever through an electrical signal. In fail secure mode, the lever stays locked from the outside during a power loss, while authorized entry is enabled when power is applied. This makes it a strong choice for security-sensitive doors that must remain secure during outages while still allowing free egress through the exit device.

• Fail Secure – outside lever is locked when power is off.
• 24 Volt operation.
• For use with 80 Series Exit Devices.

Included Components

This trim is supplied as electrified outside lever trim with MD lever configuration and no cylinder. Cylinder and related keying components must be ordered separately if required for the opening.
