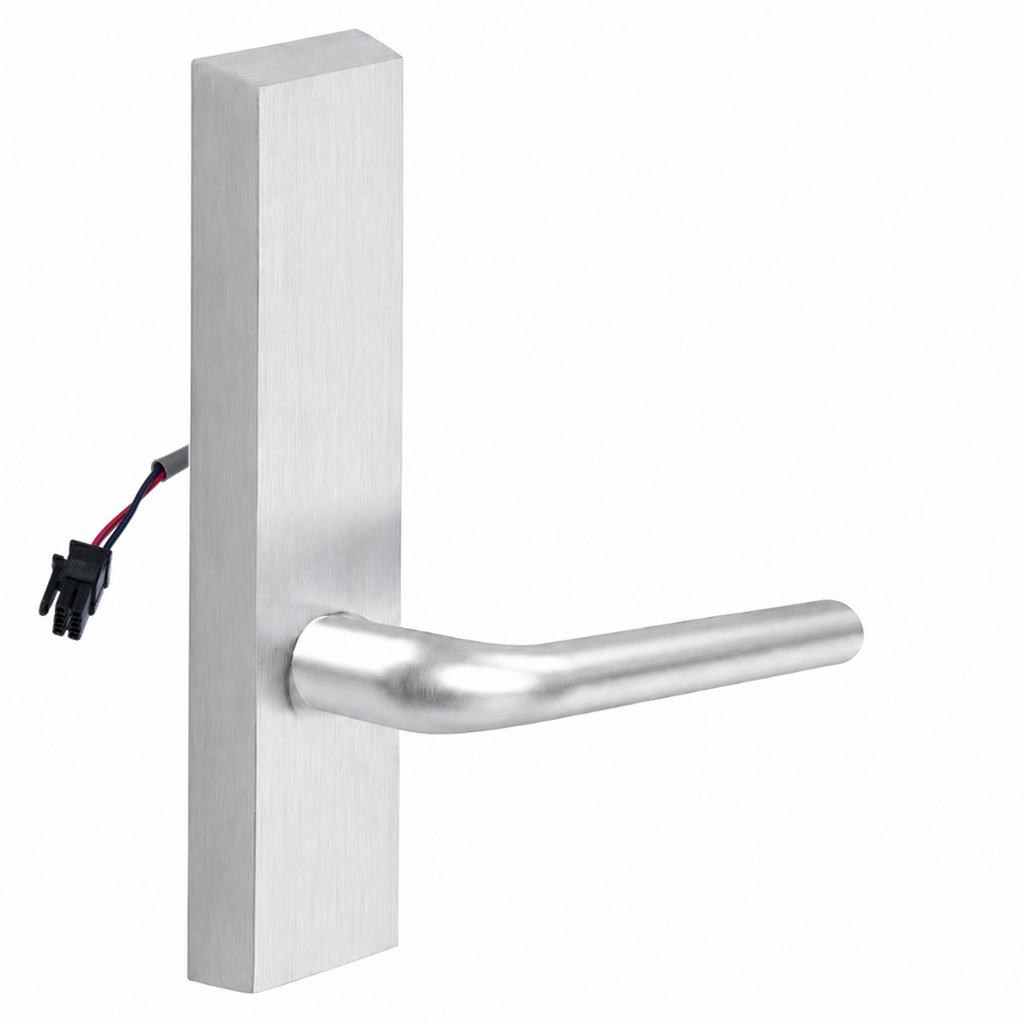

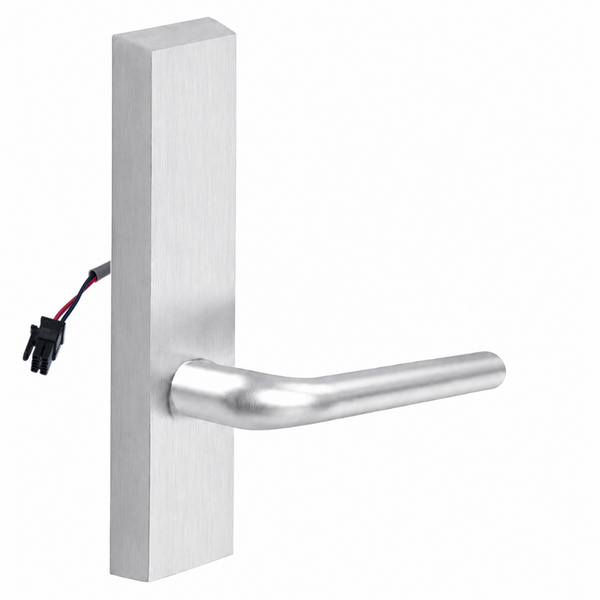

Sargent 774-8-ETME-24V Electrified Lever Trim, ET Function, ME Lever, Fail Secure, 24V, No Cylinder

The Sargent 774-8-ETME-24V electrified exit device trim is designed for use with compatible 80 Series exit devices, providing secure outside access control for commercial openings. This ET function trim features the ME lever design, operates on 24V, and is configured fail secure so the outside lever remains locked during power loss. Supplied without a cylinder, it is a practical choice for applications where credentialed access and remote release are required. Built for use with select 8800, 8888, 8500, and NB8700 Series devices, this trim offers dependable performance for institutional, commercial, and other high-traffic door openings.

Features

• Electrified ET trim provides controlled outside access for compatible Sargent exit devices.
• Configured with the ME lever style for a clean, functional lever design.
• 24-volt operation supports integration with access control systems.
• Fail secure function keeps the outside lever locked when power is interrupted.
• Supplied without a cylinder for applications using existing keying systems or alternate access control methods.
• Designed for use with Sargent 8800, 8888, 8500, and NB8700 Series exit devices.
• Made for commercial and institutional openings where remote unlocking is needed.

Functional Details

This ET electrified trim is intended for access-controlled openings where the outside lever is unlocked by electrical signal. In fail secure configuration, the trim remains locked from the outside during a power failure, while egress from the inside is maintained through the exit device.

• Fail Secure – outside lever is locked when power is off.
• 24 volt operation.
• For use with 80 Series exit devices.

Included Components

This trim is supplied without a cylinder. Exit device and related mounting hardware are ordered separately as required for the specific opening and device series.
