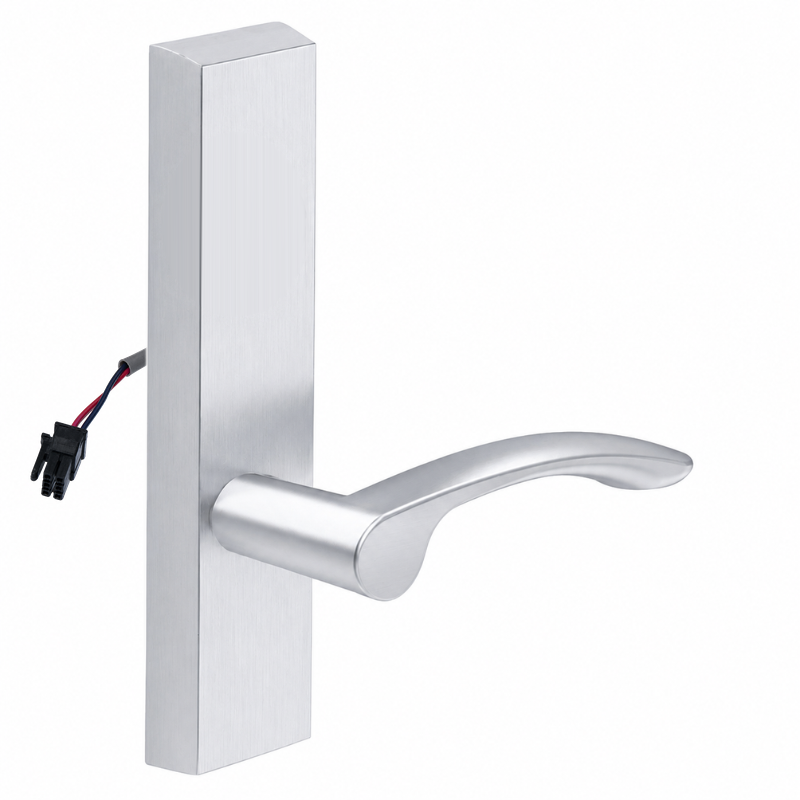

Sargent 774-8-ETMV-24V Electrified Lever Trim, ET MV Lever, Fail Secure, 24V, No Cylinder

The Sargent 774-8-ETMV-24V electrified exit device trim is a fail secure outside trim designed for use with compatible Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series models. This ET trim features the MV lever design, operates on 24V, and is supplied without a cylinder for applications that do not require keyed access at the trim. Built for commercial openings that need controlled entry from the outside while maintaining free egress from the inside, this electrified trim offers dependable integration with access control systems and is suited for demanding institutional, commercial, and public building environments.

Features

• Electrified ET lever trim is designed for use with Sargent 80 Series exit devices.
• Fail secure operation keeps the outside lever locked during power loss.
• 24V configuration supports access control and remote entry applications.
• MV lever style provides a clean, functional appearance for commercial doors.
• No cylinder is included, making it suitable for electrified openings without keyed trim control.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Built for controlled entrance on doors requiring safe, uninhibited egress.

Functional Details

In a fail secure configuration, the outside trim remains locked when power is removed, while authorized electrical input unlocks the lever for entry. This function is commonly used on access-controlled doors where security during a power interruption is preferred and free exit is always maintained by the paired exit device.

• Fail secure
• 24 volt
• Electrically controls outside trim

Included Components

This trim is supplied without a cylinder. It is intended for installation with compatible Sargent 80 Series exit devices on openings configured for electrified trim control.
