Description

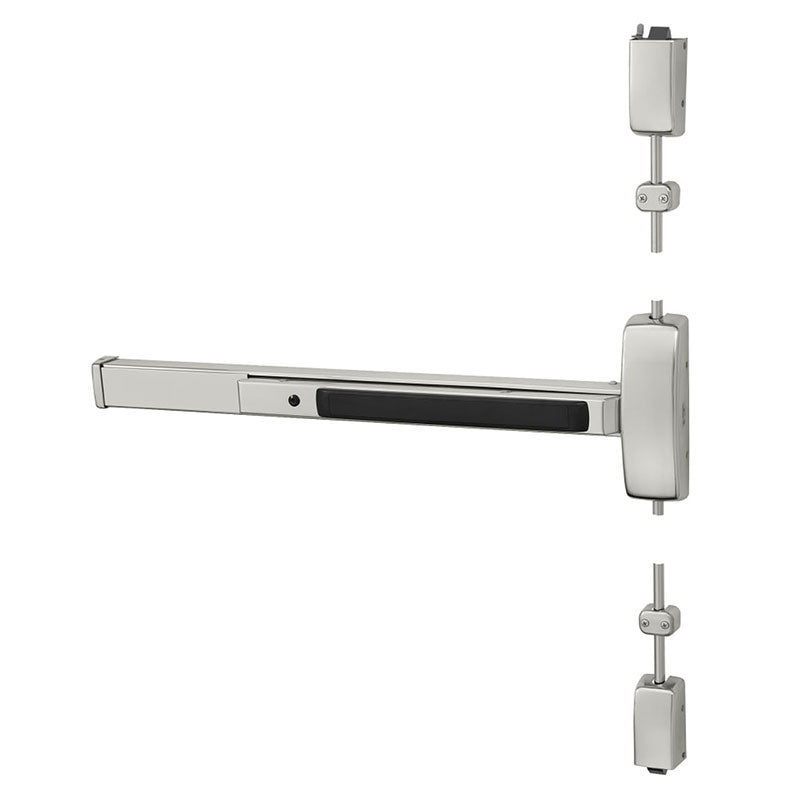

Sargent 8706J-96 is a 37"-42" wide Surface Vertical Rod Exit Device in Storeroom Function for 96" door heights, that has Hex Key Dogging, is handed and comes in US32D Satin Stainless Steel or US10B Dark Oxidized Satin Bronze Oil Rubbed Finish.
8700 Series Surface Vertical Rod Exit Devices
Has two-point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projection is adjustable through the center case.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix. 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| SKU | 8706J |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Storeroom |
| Device Length | 42" |
| Hand | LHR or RHR |
| Dogging Options | Hex Key Dogging |
| Top Strike | 646 |
| Strike Bottom | 624 |
| Includes Trim | No |
| Trim Type | Less Trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 3 1/2" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Height | 84" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
Document Center
Handing Chart
