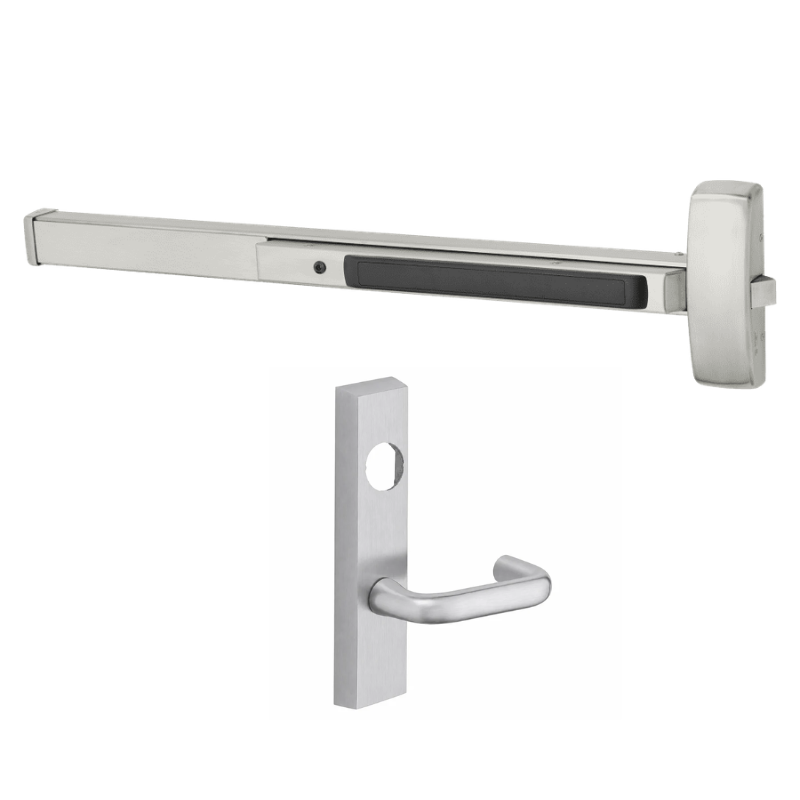

Sargent 8804-F-ETJ-LC Rim Exit Device Lever Trim, Night Latch Function, 33"-36" Dr Width, ETJ Trim, Less Cylinder, Grade 1

The Sargent 8804-F-ETJ-LC is a Grade 1 rim exit device engineered for high-traffic commercial openings that demand durability and reliable performance. Designed for door widths ranging from 33" to 36", this device features the night latch (function 04) configuration, allowing key-controlled access from the exterior while providing free egress from the inside. It comes paired with ETJ lever trim for comfortable operation and ships less cylinder, giving you the flexibility to install your preferred keying system. As part of the fire-rated 8800 Series, this exit device delivers dependable panic hardware performance suited for offices, schools, healthcare facilities, and other institutional environments.

Features

• Grade 1 rim exit device built for demanding commercial and institutional use.
• Fire-rated (F) construction for use on labeled door assemblies.
• Fits standard door widths from 33" to 36".
• ETJ lever trim provides ergonomic, ADA-compliant operation.
• Ships less cylinder for keying flexibility to match existing systems.
• Non-handed design simplifies installation and inventory.

Functional Details

The 8804 night latch function allows the outside lever to retract the latch only when the key is turned, while the inside push bar always permits free egress. This makes it ideal for controlled-access exterior doors where security and safe exit are both priorities.

• Night Latch (Key retracts latchbolt; latchbolt is held retracted by pushing pad and released by reversing action of pushing pad).

Arm Type Details

The ETJ trim uses a lever handle for exterior operation. When actuated by an authorized key, the lever retracts the rim latch, granting access without requiring the pushbar on the interior side.

Included Components

This assembly includes the rim exit device chassis, push rail, and ETJ lever trim. A mortise cylinder is not included and must be ordered separately to complete the installation.
