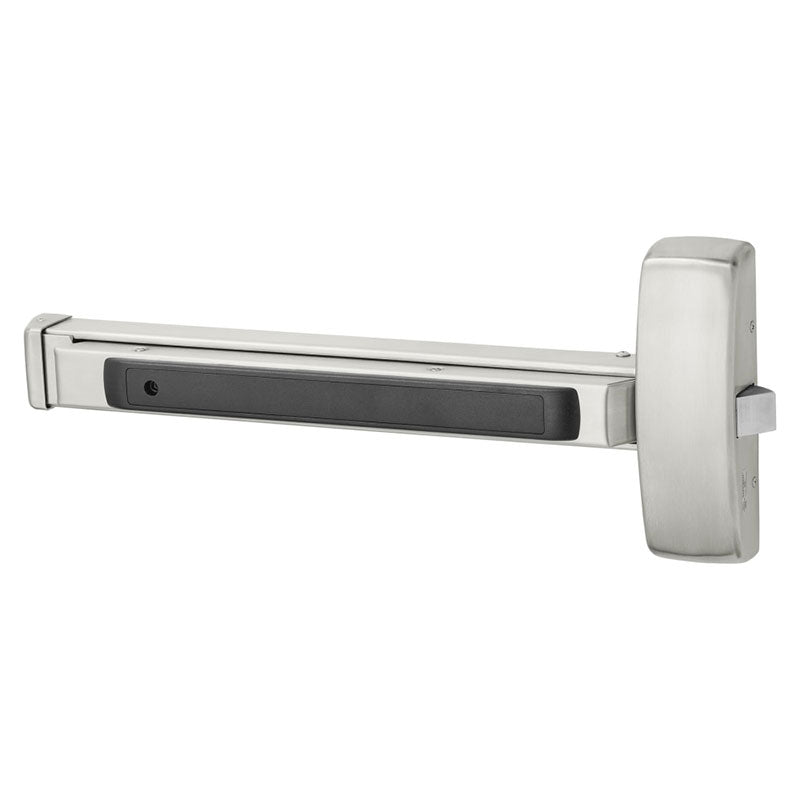

Sargent 8810-E Rim Exit Device, Exit Only, Field Reversible, 24"-32" Bar

SKU: 8810EUS32D

All SARGENT Products

Sargent 8810-E Rim Exit Device, Exit Only, Field Reversible, 24"-32" Bar

SKU: 8810EUS32D

$1,529.00/ea

Available (3‑4 Weeks)

3-4 Weeks Lead Time

Choose your options

Finish - US32D Satin Stainless Steel (630)

Quantity:

Buy Complete Door Hardware Set

Sargent ETL Trims For Sargent 8500, 8...

Function:

Finish:

Handing:

Variant

Quantity

–

+

$621.00

Sargent Cylinders - Multiple Keyways ...

Keyway:

Finish:

Variant

Quantity

–

+

$179.00

Total $2329.00

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Exit Only
Device Length	32"
Hand	Non-Handed
Dogging Options	Hex Key Dogging
Includes Trim	No
Trim Type	Less trim
Includes Cylinder(s)	No
Cylinder Type	Non-Keyed
Minimum Stile Size	4 3/4"
Door Material	Metal or Wood
Door Width	24" to 32"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	No
Reversible	Yes
Product Type	Rim Exit Devices

Product Specs

Manufacturer	Sargent
SKU	8810E
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

The Sargent 8810-E is a Rim Exit Device, that is Exit Only, is Field Reversible, has a 24"-32" Bar, and is Grade 1.

The Sargent 8810 Exit Device is exit only with no outside trim. This exit device can be customized with the select finish, select handing, select bar length 24" or 32", and select fire-rated or non-rated.

The 8810 exit device, also known as a panic bar, is applied to the surface of the door, making installation simple. Trim is sold separately.

This Sargent panic device is perfect for wood or metal doors 1-3/4" thick with a 4-1/2" minimum stile. Its excellent design ensures quiet operation and solid security.

And it is ideal for use in all institutions, office spaces, and healthcare facilities. The single-point rim latching device is made for both single-door and double-door applications.
