Technical Specs
| Physical Appearance |
Wide Stile Pushpad |
| Device Type |
Rim |
| Mechanical Function |
Exit Only |
| Device Length |
48" |
| Hand |
RHR OR LHR |
| Dogging Options |
Hex Key Dogging |
| Includes Trim |
No |
| Trim Type |
Less trim |
| Includes Cylinder(s) |
No |
| Cylinder Type |
None |
| Minimum Stile Size |
4-3/4" |
| Door Material |
Metal or Wood |
| Door Width |
43"-48" |
| Door Thickness |
1-3/4" - 2-1/4" |
| Fire Rated |
No
|
| Reversible |
Yes |
| Product Type |
Rim Exit Devices |
Product Specs
| Manufacturer |
Sargent |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
USA |
| Unit of Measure |
Each |
| UL Listing Type |
UL10C & UL305 |
| ANSI Number |
ANSI/BHMA A156.3 |
| Restrictions |
None |
| BAA Qualified |
Yes |
| Limited Warranty |
5 Years |
| Fire Rated |
No |
| Burglar Rated |
No |
| ADA Compliance |
No |

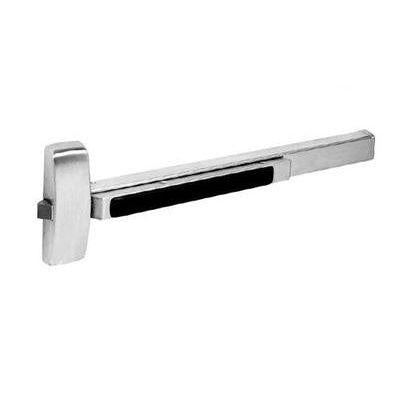

The Sargent 8810-G is a 43"-48" Exit Device is exit only with no outside trim. The 8810 exit device, also known as a panic bar, is applied to the surface of the door, making installation simple. Trim is sold separately.
This Sargent panic device is perfect for wood or metal doors 1-3/4" thick with a 4-1/2" minimum stile. Its excellent design ensures quiet operation and solid security.
And it is ideal for use in all institutions, office spaces, and healthcare facilities. The single-point rim latching device is made for both single-door and double-door applications.
