Description

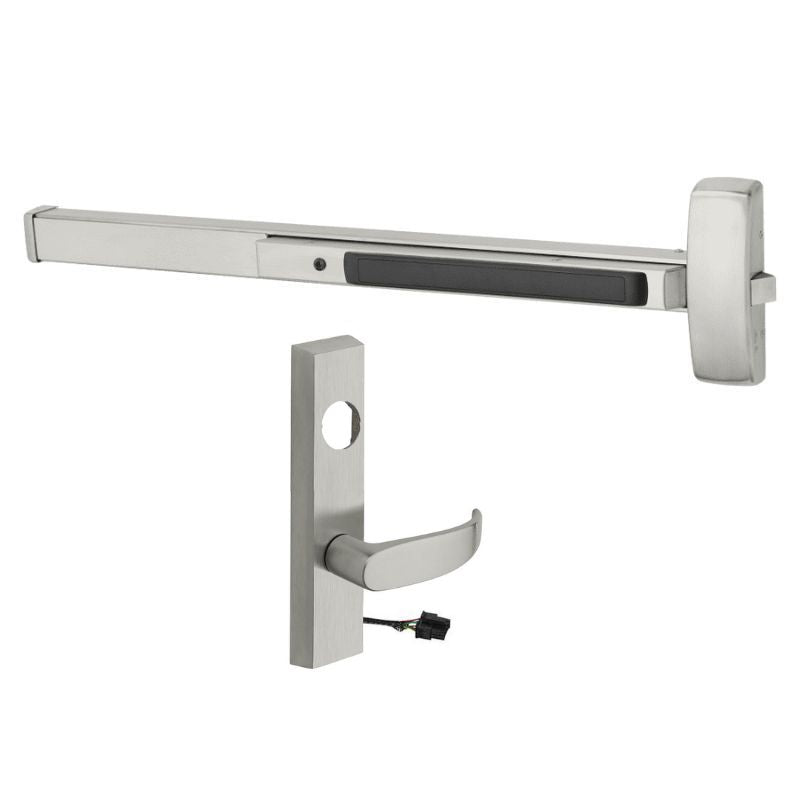

Sargent 8875-G-ETP-24V Rim Exit Device, 24V Fail Safe, P Lever, Power off Unlocks Lever Key retracts Latch, 43"-48" Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 8875-G-ETP-24V Rim Exit Device features an Electrified ETP Trim that is 24V and Fail Safe. It is designed for use with a 43"-48" bar and allows for power off unlocking and key-controlled retraction of the latch by using a lever.
75 Electrified ET Trim - Fail Safe
The Sargent 775-8-ETP-24V Electrified Lever, comes less cylinder with an ETP Trim, Fail Safe Power Off Unlocks Lever Key Retracts Latch function-Cylinder Sold Separately
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | None |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 48" |
| Hand | RHR OR LHR |
| Dogging Options | Less Dogging |
| Includes Trim | YES |
| Trim Type | ETB |
| Includes Cylinder(s) | No |
| Cylinder Type | LA Keyway Standard |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
Document Center
Handing Chart
