Description

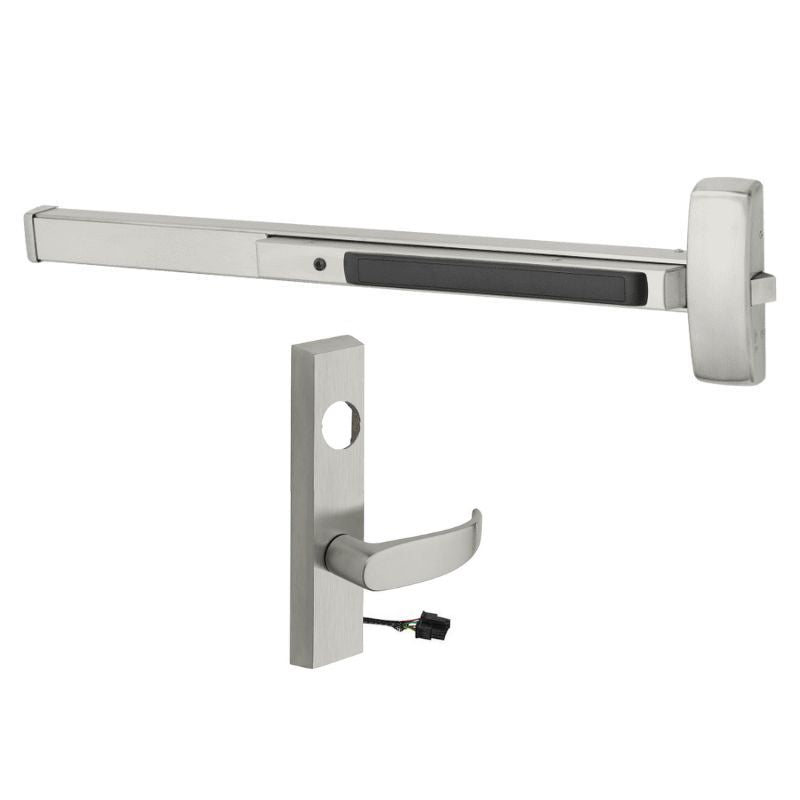

Sargent 8875-J-ETP-12V Rim Exit Device, 12V Fail Safe, P Lever, Power off Unlocks Lever Key retracts Latch, 37"-42" Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 8875-J-ETP-12V Rim Exit Device features an Electrified ETP Trim and a Fail Safe mechanism, allowing for convenient unlocking through power interruption. With a lever that can be unlocked by key retraction, this device is suitable for door widths ranging from 37 inches to 42 inches. Operated with a 12V power source.
75 Electrified ET Trim - Fail Safe
The Sargent 775-8-ETP-12V Electrified Lever, comes less cylinder with an ETP Trim, Fail Safe Power Off Unlocks Lever Key Retracts Latch function-Cylinder Sold Separately
Product Specs
| Manufacturer | Sargent |
| SKU | 8875J |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | None |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 42" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Keyed Electric Lever |
| Trim Part No. | 775-8 ETP 12V |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
