Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Device to Accept Electrified Trim |
Device Length | 32" |
Hand | LHR or RHR |
Dogging Options | Less Dogging |
Includes Trim | Yes |
Trim Type | Lever |
Trim Design | Keyed Electric Lever |
Trim Part No. | 776-8 ETP 12V |
Includes Cylinder(s) | No |
Minimum Stile Size | 4 3/4" |
Door Material | Metal or Wood |
Door Width | 24" to 32" |
Door Thickness | 1 3/4" - 2 1/4" |
Fire Rated | No |
Product Type | Rim Exit Devices |
Product Specs
Manufacturer | Sargent |
SKU | 8876E |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Burglar Rated | No |
ADA Compliance | Yes |

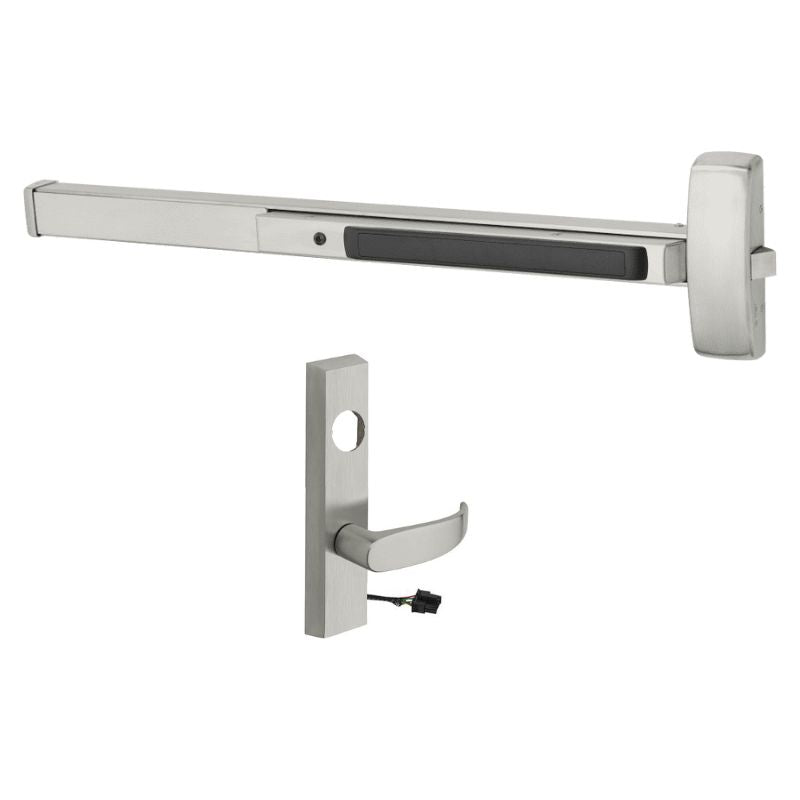

Sargent 8876-E-ETP-12V Rim Exit Device, 12V Fail Secure, P-Lever, Power off Unlocks Lever Key retracts Latch, 24-32 Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 8876-E-ETP-12V Rim Exit Device is designed for use on 24-32 inch doors and is equipped with a 12V Fail Secure feature. In the event of a power failure, the P-Lever unlocks the lever and retracts the latch, allowing for a quick and easy exit. This Grade 1 device also does not require a cylinder and does not have a dogging feature.
76 Electrified ET Trim - Fail Secure
776-8-ETP-12V-LC Electrified Lever Trim, ETP Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What happens to the Sargent 8876-E-ETP-12V Rim Exit Device during a power outage?
It's fail-secure, meaning the outside lever unlocks during a power failure, allowing free exit. The key can retract the latchbolt even when electronically locked.
