Description

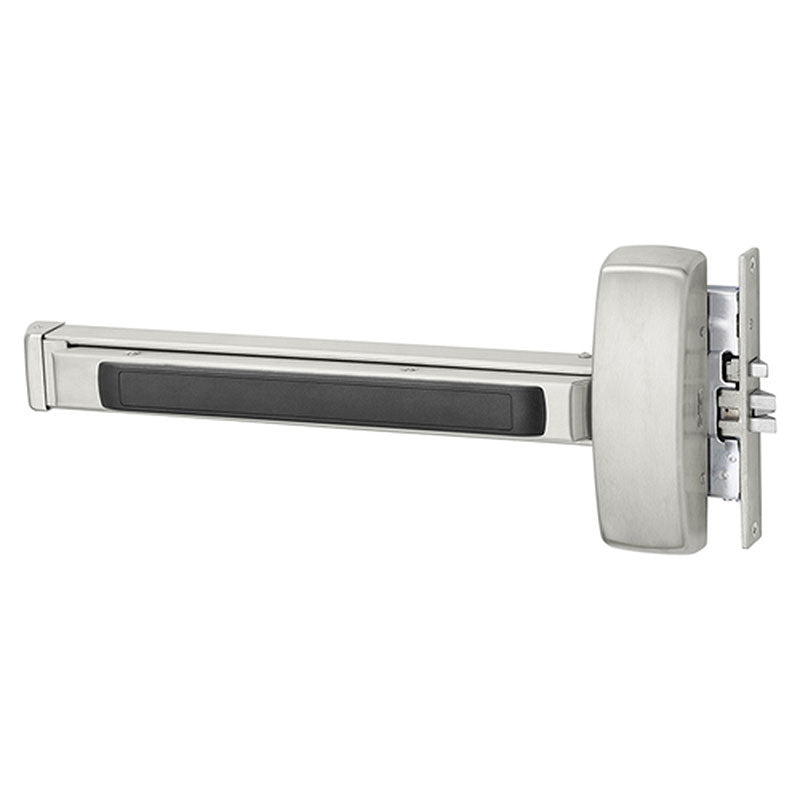

The Sargent 8904E-US32D is a Mortise Device Exit Bar, with a Wide Stile Pushpad, is 32" Long and accommodates door 24"-32" wide, is Night Latch Function, has Hex Key Dogging, is handed Left Hand Reverse or Right Hand Reverse, is Grade 1, and comes in Satin Stainless Steel Finish
8900 Series Mortise Exit Devices
The 8900 Series is for single-door applications
8900 Mortise Lock Exit Device has concealed single-point guarded latching for additional security and is designed for standard-width stile applications on wood and metal doors.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- option. 4 1/2" (114mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| SKU | 8904E LHR 32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Mortise |
| Mechanical Function | Night Latch |
| Device Length | 32" |
| Hand |
LHR or RHR |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Cylinder Only |
| Includes Cylinder(s) | Yes |
| Cylinder Type | 1 3/4" Mortise |
| Minimum Stile Size | 4 1/2" |
| Door Material | Metal |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Mortise Exit Devices |
