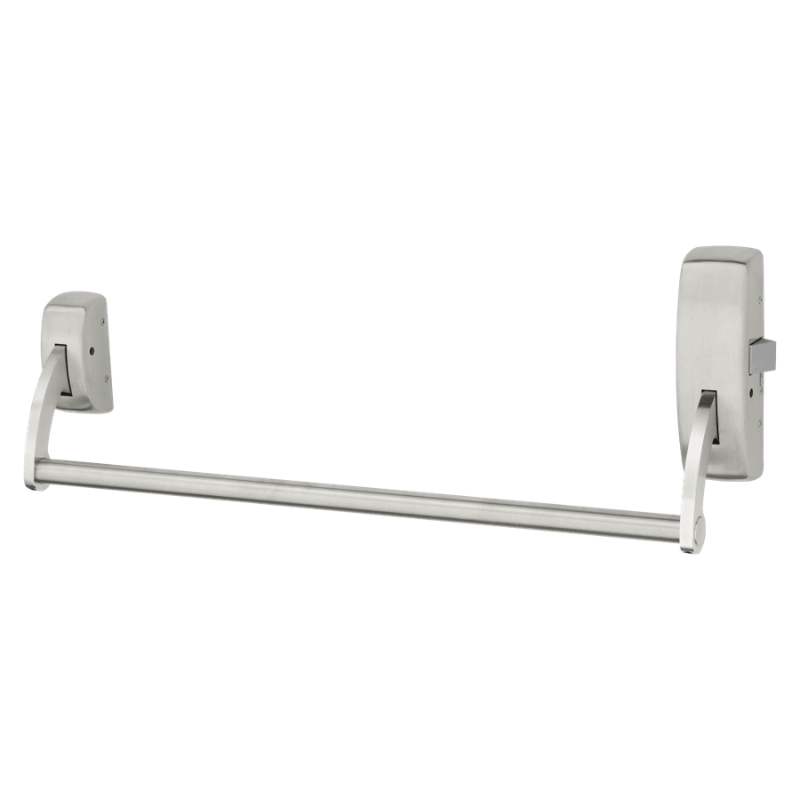

Sargent 9898-44 Rim Crossbar Exit Device, Surface Mounted, Hex Key Dogging, 44" Bar, 1 3/4" Tk Door, Reversible

The Sargent 9898-44 Rim Crossbar Exit Device delivers dependable, code-compliant egress for high-traffic commercial openings. Built as a surface-mounted rim device with a durable crossbar actuation, it fits standard 1 3/4" thick doors and covers openings up to 44" wide. The device features hex key dogging, allowing the latch to be held retracted for push-pull operation during busy periods, and its reversible design simplifies installation on both left- and right-hand doors. As part of Sargent's 9800 Series, the 9898 is engineered for long-term reliability, smooth operation, and consistent performance in schools, offices, healthcare, and other institutional environments.

Features

• Surface-mounted rim exit device for standard commercial door applications.
• Crossbar-style actuation provides a familiar, easy-to-use push motion.
• Hex key dogging holds the latch retracted for quiet push-pull operation.
• Reversible design fits both left-hand and right-hand door swings.
• Sized for a 44" bar length to accommodate wider openings.
• Compatible with 1 3/4" thick doors.

Functional Details

Hex key dogging lets authorized personnel mechanically retract and hold the latch bolt using a hex key, keeping the door in a push-pull state to reduce wear and noise during high-traffic hours. Reengaging the dogging restores normal latching for secure egress.

• Hex key dogging standard.
• Non-handed, field reversible device.
• For use on 1 3/4" thick doors.
