Technical Specs
| Series Name |
Profile |
| Lock Platform |
Cylindrical Lock |
| Reader Technology |
Keypad Only |
| Keypad Type |
Electronic |
| # Users |
100 |
| Cylinder Type |
Conventional Cylinder |
| # Pins |
6 |
| Keyway |
LA |
| Keying |
Keyed Different |
| # of Keys |
2 |
| Door Thickness |
1-3/4 In. |
| Latch Backset Dimension |
2-3/4 In. |
| Strike Type |
ASA |
| Power |
4 C Batteries |
| Product Type |
Cylindrical Locks with Keypad Trim |
Product Specs
| Manufacturer |
Sargent |
| SKU |
KP10XG77 LB |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
USA |
| Unit of Measure |
Each |
| BAA Qualified |
Yes |

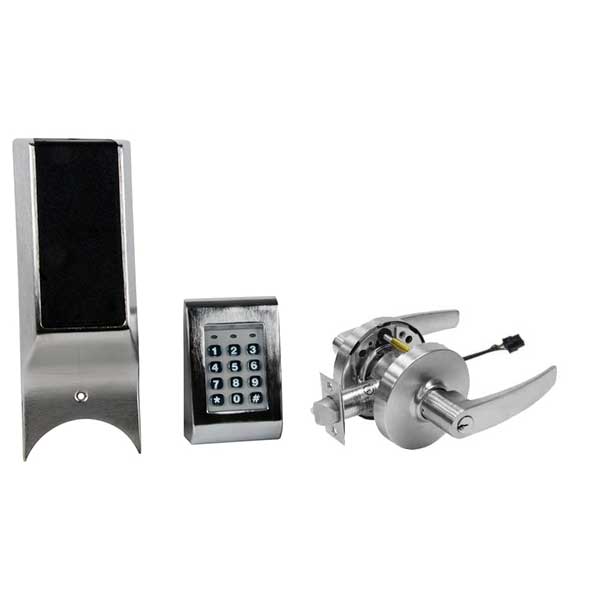

Sargent KP10XG77-LB-LA-KD Cylindrical Keypad Lock, With Key Override, L Rose, B Lever, LA Keyway Keyed Random, [2] Change Keys, Non Handed
The Sargent KP10XG77-LB-LA-KD Cylindrical Keypad Lock is equipped with a key override, a L rose, and a B lever, giving it a non-handed design. It comes with [2] change keys and is keyed randomly using the LA keyway.
The Keypad Operated Products 10X Line Cylindrical lock is available with a wide selection of lever designs and hardware finishes. Its unique design provides uniformity when used with other SARGENT locks at a facility. The KP products offer economical, standalone access control solutions.
- Certified ANSI A156.2 Series 4000 - Grade 1
- UL listed to U.S.A. and Canadian safety standards Listed for 3-hour doors (double doors require 41 - option)
- Motor driven 10X Line cylindrical lock
- Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw (41- option) available
- 2-3/4" (70mm) backset standard. Consult the factory for other backsets available
- Non-handed
- Heavy-duty lever spring return rose assembly
- Steel spacer bushing and extended one-piece bearing sleeves
- Steel mounting studs
- 3 through-bolt position combinations
- Key override standard
- Includes code to activate a horn when keypad buttons are pushed
- Not available with 82-, F1-82, 83-, F1-83, or 84- options
- For 1-3/4" (44mm) thick doors standard
