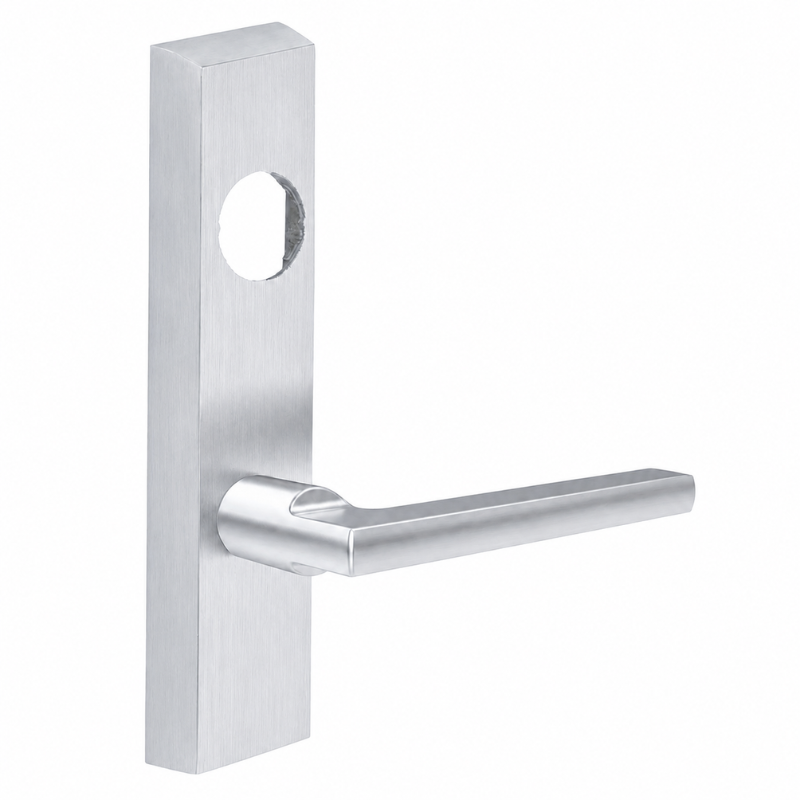

The Sargent 704-ETMD Exit Device Trim comes less cylinder with a Night Latch, Key Retracts Latch Function, works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, 9900 Series Devices, 1-3/4" Mortise Cylinder for Mortise Devices, ET Controls, MG Lever Design.

The Sargent 704-ETMD Exit Device Trim comes less cylinder and is designed with a Night Latch, Key Retracts Latch function for secure controlled entry on compatible Sargent exit devices. This trim works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices, making it a practical choice for a wide range of door openings. It is configured for a 1-3/4" mortise cylinder for mortise devices, includes ET controls, and features the MG lever design. Built for commercial applications, the 704-ETMD trim provides dependable operation and compatibility with listed Sargent device series.

Features

• Sargent 704-ETMD exit device trim is supplied less cylinder for applications requiring field-selected cylinder configuration.
• This trim includes a Night Latch, Key Retracts Latch function for controlled exterior access.
• Compatible with Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices.
• Designed for use with a 1-3/4" mortise cylinder for mortise devices.
• Includes ET controls as specified in the product configuration.
• Features the MG lever design.

Functional Details

The Night Latch, Key Retracts Latch function allows the outside trim to remain rigid while entry is gained by key operation that retracts the latch. This setup is commonly used where exterior access should be limited to authorized keyholders while maintaining exit capability through the device.

• Night Latch - key retracts latch.
• Available for rim and mortise devices.

Included Components

This Sargent 704-ETMD exit device trim is supplied less cylinder. It is configured for use with a 1-3/4" mortise cylinder on mortise device applications and is furnished with the MG lever design and ET controls.
