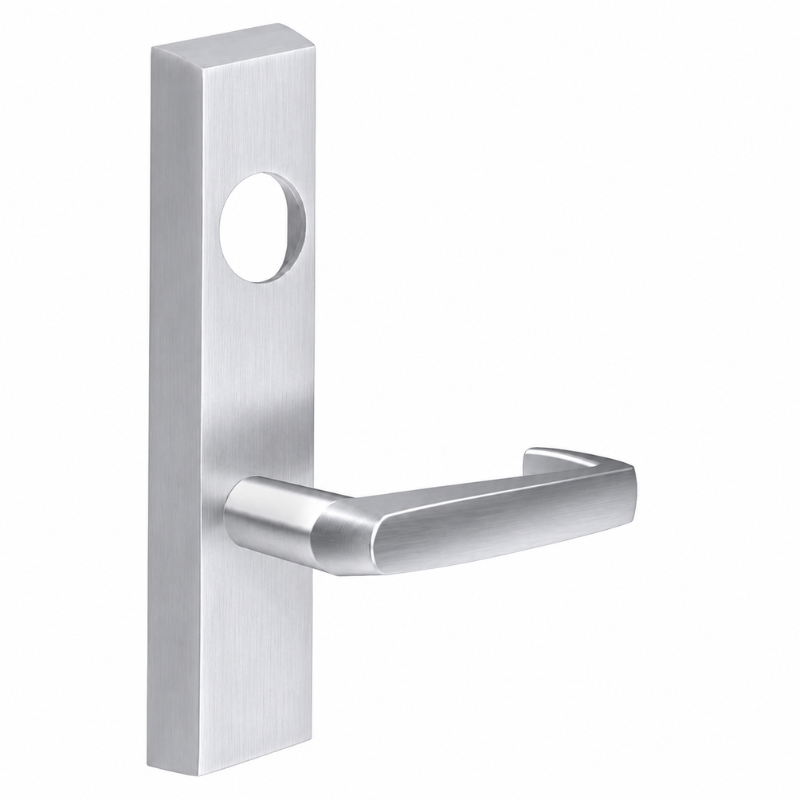

The Sargent 704-ETNJ Exit Device Trim comes less cylinder with a Night Latch, Key Retracts Latch Function, works for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, 9900 Series Devices, 1-3/4" Mortise Cylinder for Mortise Devices, ET Controls, NJ Lever Design.

The Sargent 704-ETNJ Exit Device Trim comes less cylinder and is built with a Night Latch, Key Retracts Latch Function for dependable access control on compatible exit devices. Designed to work for Sargent's Rim and Mortise 8300, 8500, 8800, 8900, 9800, and 9900 Series Devices, this trim supports ET controls and features the NJ lever design. It is configured for a 1-3/4" mortise cylinder for mortise devices, making it a practical choice for retrofit or replacement applications where the cylinder is supplied separately. This trim provides the key-operated latch retraction needed for secure exterior access on listed Sargent device series.

Features

• Sargent 704-ETNJ exit device trim is supplied less cylinder for applications where the cylinder is ordered separately.
• Night Latch, Key Retracts Latch function provides keyed entry by retracting the latch.
• Designed to work for Sargent's rim and mortise 8300, 8500, 8800, 8900, 9800, and 9900 series devices.
• Supports ET controls for compatible electrified trim applications.
• Uses a 1-3/4" mortise cylinder for mortise devices.
• Includes the NJ lever design.

Functional Details

This night latch trim allows outside entry by key. When the correct key is turned, the latch retracts for access, while the trim is supplied less cylinder so the appropriate cylinder can be selected separately for the opening requirements.

• Night latch
• Key retracts latch
• Outside trim is rigid at all times

Included Components

This trim is supplied less cylinder. For mortise device applications, it is intended for use with a 1-3/4" mortise cylinder.
