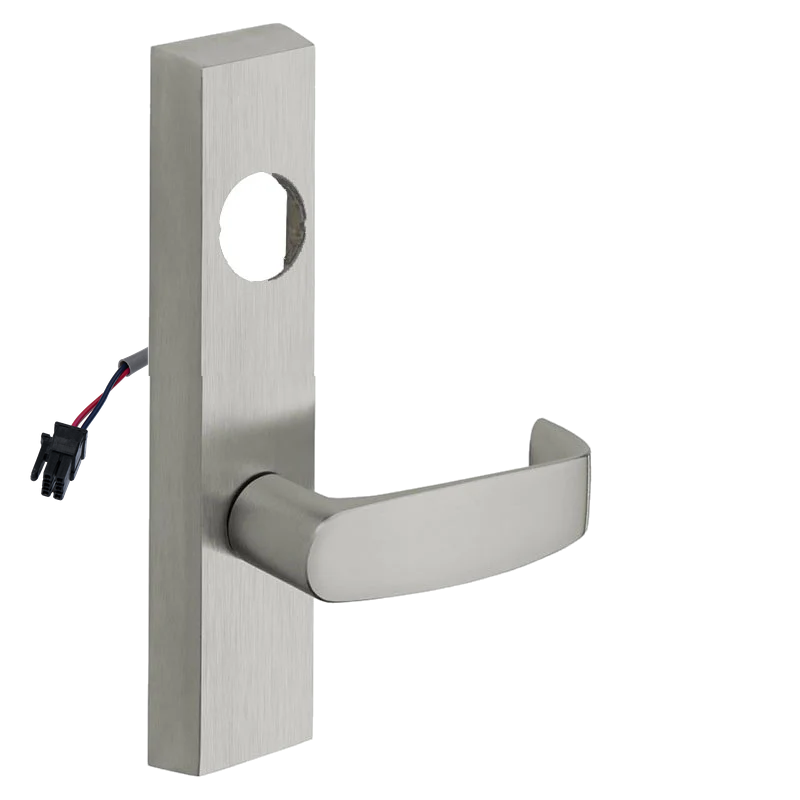

Sargent LC-775-8-ETB-12V Electrified Lever Trim for 80 Series Exit Devices

The Sargent LC-775-8-ETB-12V is an electrified ET lever trim designed for use with Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series models. This fail safe trim is supplied less cylinder and uses a B lever design for a clean, durable access control solution on commercial openings. Built for keyed lever control with electrical locking and unlocking capability, it is well suited for applications that require remote access management while maintaining reliable egress. The unit is engineered for compatibility with rim, mortise, surface vertical rod, and concealed vertical rod exit device configurations within the 80 Series platform.

Features

• Electrified ET lever trim is designed for Sargent 80 Series exit devices.
• Fail safe operation unlocks the lever when power is applied and returns to the secure state when power is removed.
• B lever configuration provides a durable and practical trim option for commercial doors.
• Supplied less cylinder for field configuration with the appropriate keyed cylinder.
• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.
• Available for use on rim, mortise, surface vertical rod, and concealed vertical rod device applications.
• Designed to support electrified access control openings requiring controlled entry and free egress.
• Listed for fire door applications when used with the appropriate device combinations.

Functional Details

This ET function electrified trim allows outside lever control through electrical operation while preserving safe egress from the inside. In fail safe configuration, the outside lever is unlocked when power is on and secured when power is interrupted, making it appropriate for openings that must release upon loss of power. Cylinder control remains available based on the trim function and device setup.

• Outside lever is electrically locked or unlocked.
• Fail safe: lever unlocked when energized.
• Key retracts latch.

Included Components

This trim is supplied as an electrified outside lever trim assembly with B lever design and is furnished less cylinder. Cylinder, exit device, and related door hardware are ordered separately.
