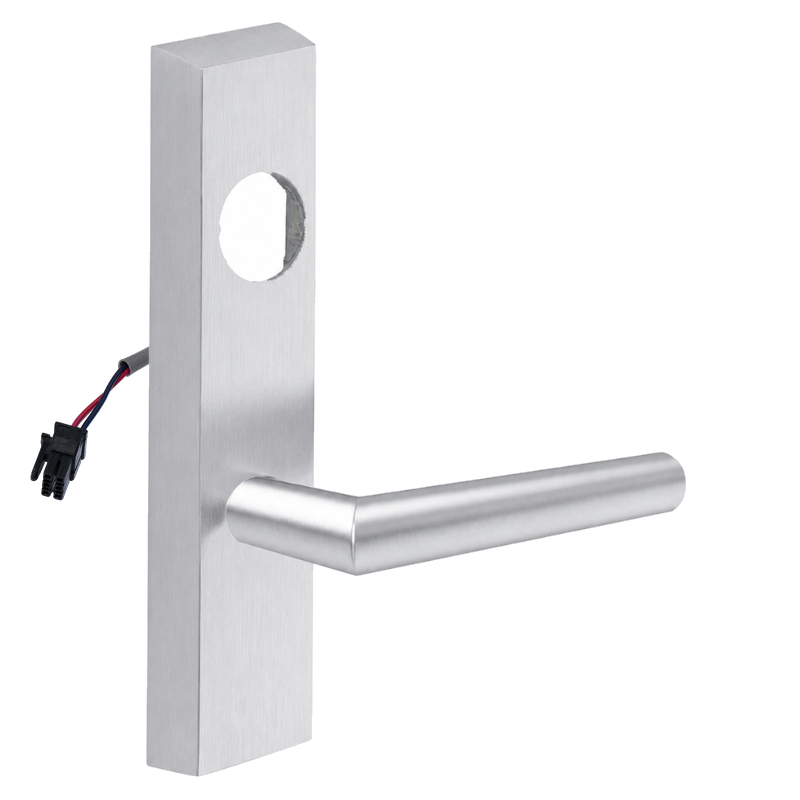

Sargent LC-775-8-ETMI-12V Electrified Lever Trim, "ET" MI Lever, Key Retracts Latch, Fail Safe, 12V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETMJ-12V electrified lever trim is designed for use with Sargent 80 Series exit devices, providing controlled outside access with dependable fail safe operation. This ET trim features the MJ lever design and is configured so power off unlocks the lever, while the key retracts the latch for mechanical entry. Built for compatibility with 8800, 8888, 8500, and NB8700 series exit devices, it is a practical choice for commercial openings that require remote access control integration. This trim is supplied less cylinder and is engineered for 12V operation in demanding institutional, educational, and commercial applications.

Features

• Electrified ET lever trim for Sargent 80 Series exit devices.

• Configured for 12V operation for access control applications.

• Fail safe function unlocks the lever when power is off.

• Key operation retracts the latch for mechanical entry.

• MJ lever design provides a clean, durable trim option.

• Compatible with 8800, 8888, 8500, and NB8700 Series exit devices.

• Supplied less cylinder for field-selected keying requirements.

• Designed for commercial and institutional door openings requiring electrified trim control.

Functional Details

This fail safe electrified trim is intended for openings where the outside lever should remain unlocked during a power loss. In normal operation, the trim works with the building’s access control system to manage entry from the outside, while authorized key use provides mechanical latch retraction when needed.

• Fail safe

• Power off unlocks lever

• Key retracts latch

Included Components

This electrified trim is supplied less cylinder. The cylinder must be ordered separately to match the opening’s keying requirements.
