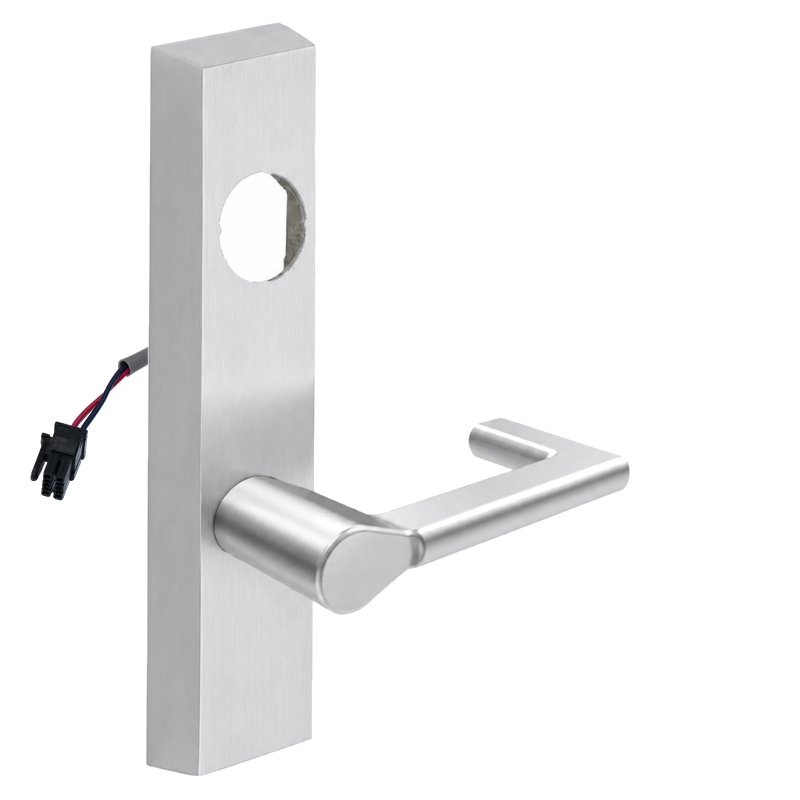

Sargent LC-775-8-ETND-12V Electrified Lever Trim, "ET" ND Lever, Key Retracts Latch, Fail Safe, 24V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETMJ-24V is an electrified ET lever trim designed for use with Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series models. This fail safe trim unlocks the lever when power is removed, while the key retracts the latch for mechanical access when needed. Built for commercial openings that require controlled entry and dependable egress, it combines remote access capability with the durability expected from Sargent exit device trim. This 24V electrified lever trim is supplied less cylinder and is well suited for applications where power-off unlocking is required.

Features

• Electrified ET trim is designed for Sargent 80 Series exit devices.

• MJ lever design provides a clean, commercial-grade appearance.

• Fail safe operation unlocks the lever when power is removed.

• Key operation retracts the latch for mechanical entry.

• 24V configuration supports controlled access applications.

• Supplied less cylinder for field selection of the appropriate keying system.

• Made for use with 8800, 8888, 8500, and NB8700 Series exit devices.

• Provides outside lever control while maintaining exit device function on the egress side.

Functional Details

This ET function electrified trim is intended for openings where the outside lever must be controlled by an access system. In the fail safe configuration, the outside lever is unlocked when power is off. The key cylinder provides mechanical latch retraction, allowing authorized access independent of the electrical control.

• Fail safe

• Power off, unlocks lever

• Key retracts latch

Included Components

This trim is supplied less cylinder. Cylinder and related keying components are ordered separately to match the opening requirements.
