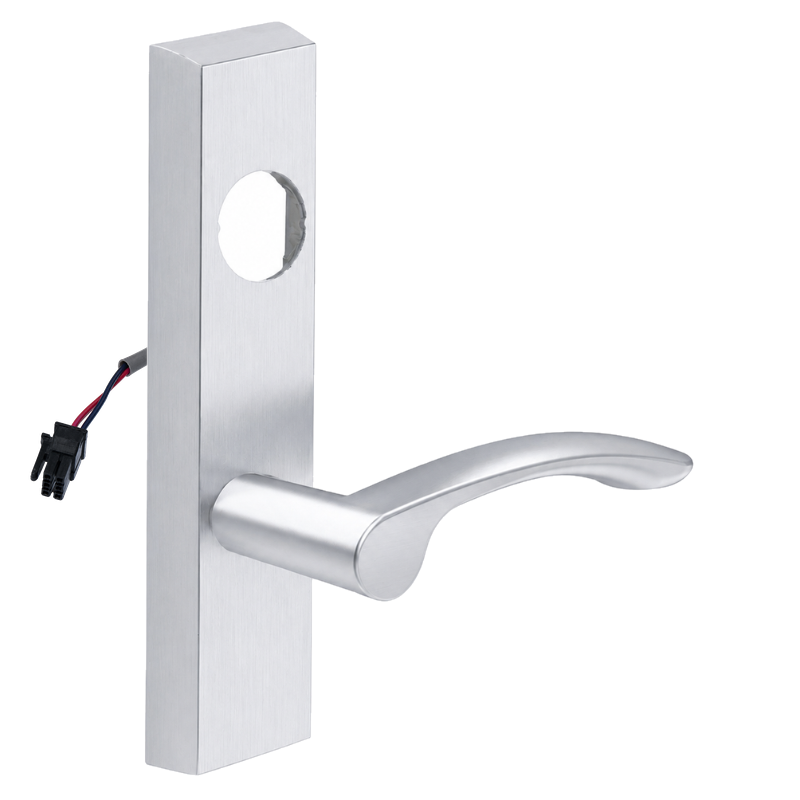

Sargent LC-775-8-ETMV-12V Electrified Lever Trim, "ET" MV Lever, Key Retracts Latch, Fail Safe, 12V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETNJ-12V is an electrified ET lever trim designed for use with Sargent 80 Series exit devices, including 8800, 8888, 8500, and NB8700 Series models. This fail safe trim unlocks the lever when power is removed, making it a practical choice for openings that require controlled egress with remote access capability. It features the NJ lever design, operates on 12V, and includes key retraction of the latch for mechanical override. Supplied less cylinder, this trim is built to integrate cleanly with compatible rim and mortise exit device applications where electrified outside access is needed.

Features

• Electrified ET lever trim for compatible Sargent 80 Series exit devices.

• Configured with the NJ lever design for a clean, durable operating trim.

• Fail safe function unlocks the lever when power is off.

• 12V operation supports electrified access control applications.

• Key retracts latch to provide mechanical override.

• Supplied less cylinder for field preparation with the required keying system.

• Designed for use with 8800, 8888, 8500, and NB8700 Series exit devices.

• Suitable for controlled entry applications on panic and fire exit hardware.

Functional Details

This ET electrified trim is designed to control the outside lever on a compatible exit device. In this fail safe configuration, the lever remains unlocked when power is interrupted, allowing access from the trim side. The key cylinder provides mechanical latch retraction for override when needed, making it useful for openings that combine access control with emergency egress hardware.

• Fail safe (power off unlocks lever)

• Key retracts latch

• For use with 80 Series exit devices

Included Components

This trim is supplied less cylinder. Cylinder, keying components, and the compatible 80 Series exit device are ordered separately.
