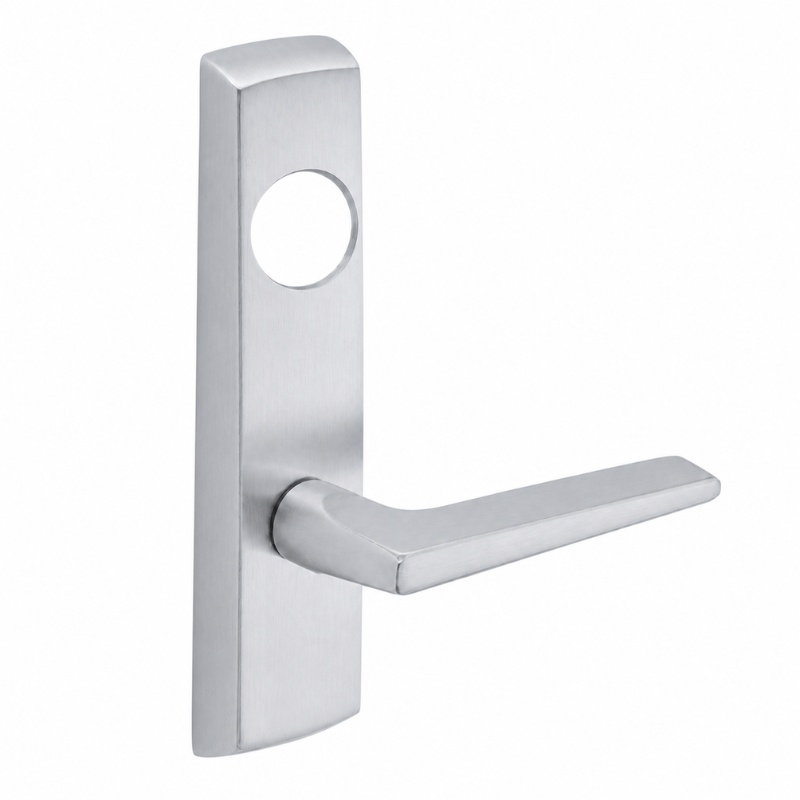

Sargent LC-P704-NEF Narrow Stile Exit Device Lever Trim, F Lever, Night Latch Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P704-NEF narrow stile exit device lever trim is designed for use with compatible PE80 Series exit devices where keyed outside access and lever operation are required. This trim features the F lever design and a night latch function, allowing the key to retract the latch for controlled entry from the exterior side. Supplied less cylinder, it offers flexibility for matching existing key systems while supporting a clean, narrow stile application. Built for compatibility with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices, this trim is a practical choice for commercial aluminum storefront and similar door openings.

Features

• Narrow stile lever trim is designed for use with select Sargent PE80 Series exit devices.

• Night latch function allows the key to retract the latch for exterior access control.

• F lever design provides a familiar operating grip for commercial door applications.

• Less cylinder configuration supports integration with existing master key or cylinder systems.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series devices.

Functional Details

The night latch function is intended for doors that require pull trim on the outside with keyed entry when access is authorized. In this configuration, the outside lever trim works with the exit device so the key retracts the latch, allowing controlled entry from the exterior while maintaining free egress from the inside.

• Night latch trim function.

• Key retracts latch.

• Less cylinder.

• For narrow stile applications.

Included Components

Trim is supplied less cylinder. Cylinder and related keying components are not included.
