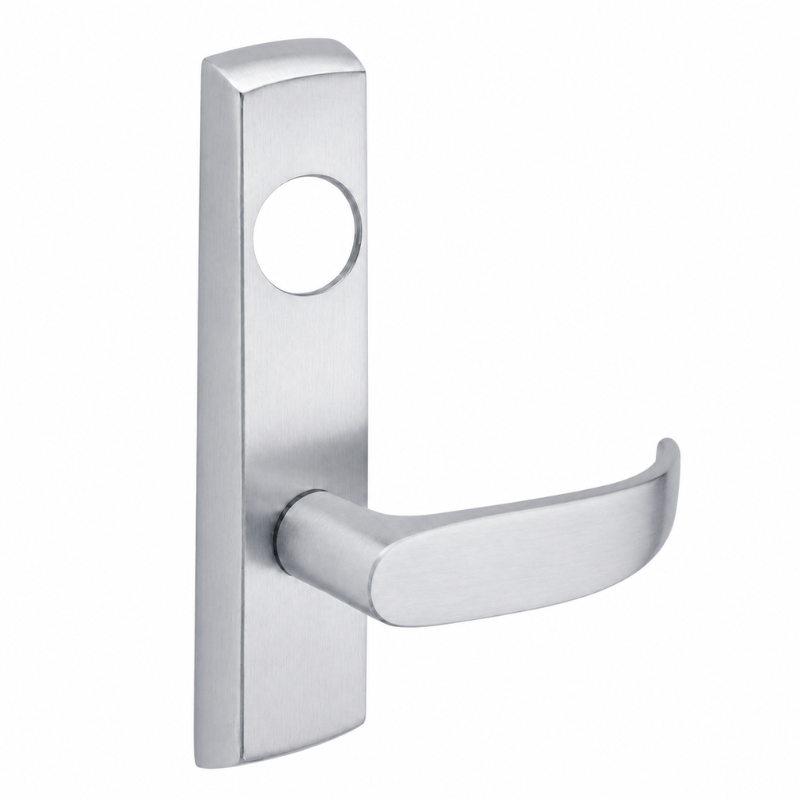

Sargent LC-P704-NEP Narrow Stile Exit Device Lever Trim, P Lever, Night Latch Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P704-NEP narrow stile exit device lever trim is designed for use with compatible PE80 Series exit devices in applications that require dependable exterior access control and clean narrow stile compatibility. This trim features the P lever design and a night latch function where the key retracts the latch for authorized entry from the outside. Supplied less cylinder, it gives flexibility for keying to match existing building systems. Built to pair with select Sargent PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 series exit devices, this trim is a practical choice for aluminum storefront and other narrow stile door openings.

Features

• P lever trim configuration is designed for narrow stile door applications using compatible Sargent PE80 Series exit devices.

• Night latch function allows outside entry by key operation that retracts the latch.

• Less cylinder design supports field selection and integration with existing key systems.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices as listed in the product title.

• Provides a practical exterior trim option for controlled access on exit device openings.

Functional Details

The night latch function is used where exterior access should remain locked except for authorized users. In this configuration, the outside lever does not provide free entry, and access is gained by using a key to retract the latch. Because this trim is supplied less cylinder, the cylinder is selected separately to meet the opening’s keying requirements.

• Night latch function.

• Key retracts latch.

• Less cylinder.

• Lever trim for exit device applications.
