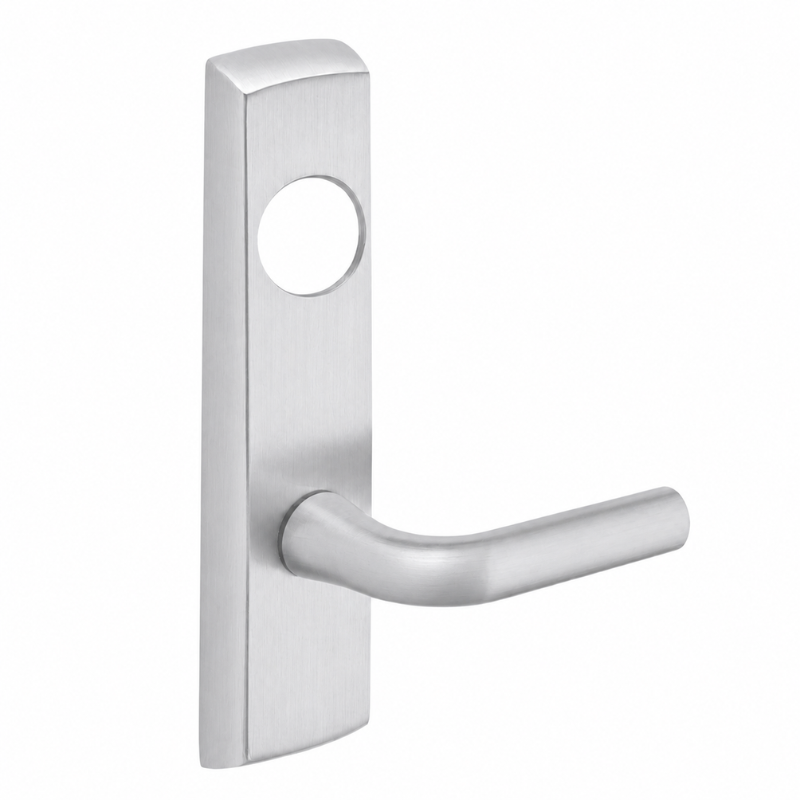

Sargent LC-P704-NEW Narrow Stile Exit Device Lever Trim, W Lever, Night Latch Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P704-NEW narrow stile exit device lever trim is designed for use with compatible PE80 Series exit devices where keyed outside access and lever operation are required. Built for narrow stile aluminum door applications, this trim features the W lever design and a night latch function that allows key operation to retract the latch. Supplied less cylinder, it offers flexibility for matching existing key systems while supporting a clean, professional installation. This trim is intended for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices, making it a practical solution for commercial openings that need controlled entry from the exterior.

Features

• Designed as a narrow stile lever trim for use with select Sargent PE80 Series exit devices.

• Includes the W lever style for a consistent and functional exterior trim design.

• Night latch function allows the key to retract the latch for controlled outside entry.

• Supplied less cylinder to support field selection of the appropriate keying system.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

Functional Details

This trim uses a night latch function, which means the outside lever remains rigid while authorized entry is gained by using a key to retract the latch. This setup is commonly selected for doors that require secure exterior access without free lever operation from the outside.

• Night latch function.

• Key retracts latch.

• Less cylinder.

• For narrow stile applications.

• Used with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 exit devices.

Included Components

This product is supplied as exterior lever trim only and is furnished less cylinder. The cylinder must be ordered separately when required for the opening.
