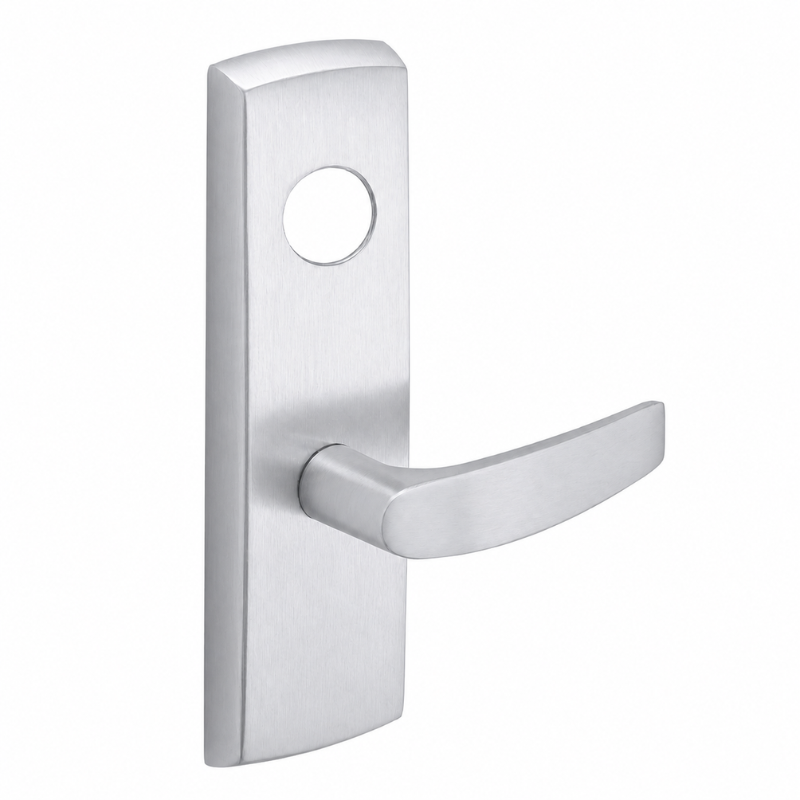

Sargent LC-P704-WEB Wide Stile Exit Device Lever Trim, B Lever, Night Latch Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P704-WEB wide stile exit device lever trim is designed for use with compatible PE80 Series exit devices and provides a practical night latch function for controlled exterior access. This trim features a B lever design and is supplied less cylinder, making it a good choice for applications where cylinder selection is handled separately. Built for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series devices, it offers a dependable trim option for commercial openings that require keyed entry capability with latch retraction from the outside when authorized.

Features

• Wide stile lever trim is designed for use with select Sargent PE80 Series exit devices.

• Night latch function allows key operation to retract the latch for authorized entry.

• B lever configuration provides a familiar lever style for commercial door applications.

• Supplied less cylinder for projects requiring separate cylinder preparation or keying.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

Functional Details

The night latch function is intended for openings where outside access is controlled by key. In this configuration, the outside lever trim works with a keyed cylinder so the key retracts the latch for entry, while the exit device maintains safe egress from the inside.

• Night latch function.

• Key retracts latch.

• Less cylinder.

• For use with PE8304 Series exit devices.

• For use with PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

Included Components

This trim is supplied less cylinder. Cylinder and any related keying components are not included and must be specified separately to complete the keyed function.
