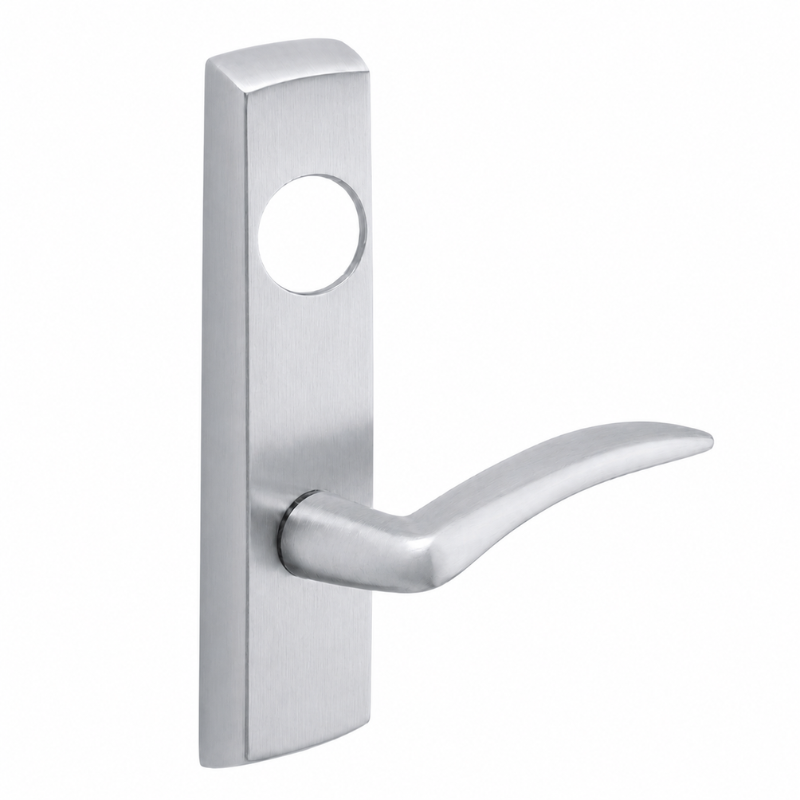

Sargent LC-P706-8-NEA Narrow Stile Exit Device Lever Trim, A Lever, Storeroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P706-8-NEA Narrow Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices. This trim features the A lever design and a storeroom function where the key retracts the latch, making it a practical choice for controlled exterior access points that require secure entry from the outside and free egress from the inside. Supplied less cylinder, the LC-P706-8-NEA is intended for applications where the cylinder is specified separately to match the facility’s keying requirements.

Features

• Sargent LC-P706-8-NEA narrow stile exit device lever trim is made for compatible PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• The trim includes the A lever design for narrow stile door applications.

• Storeroom function allows the outside lever trim to remain secured until authorized key operation is used.

• Key retracts latch operation provides controlled entry from the exterior side.

• Supplied less cylinder so the required cylinder can be ordered separately for the desired keying system.

Functional Details

This storeroom function trim is intended for doors that need outside access control while maintaining safe egress. In this configuration, authorized entry is gained by key operation that retracts the latch, while the exit device on the interior side continues to provide unobstructed exit capability.

• Key retracts latch.

• For use with PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series exit devices.

• Less cylinder.

Included Components

This trim is supplied as a narrow stile exit device lever trim with A lever configuration. Cylinder is not included.
