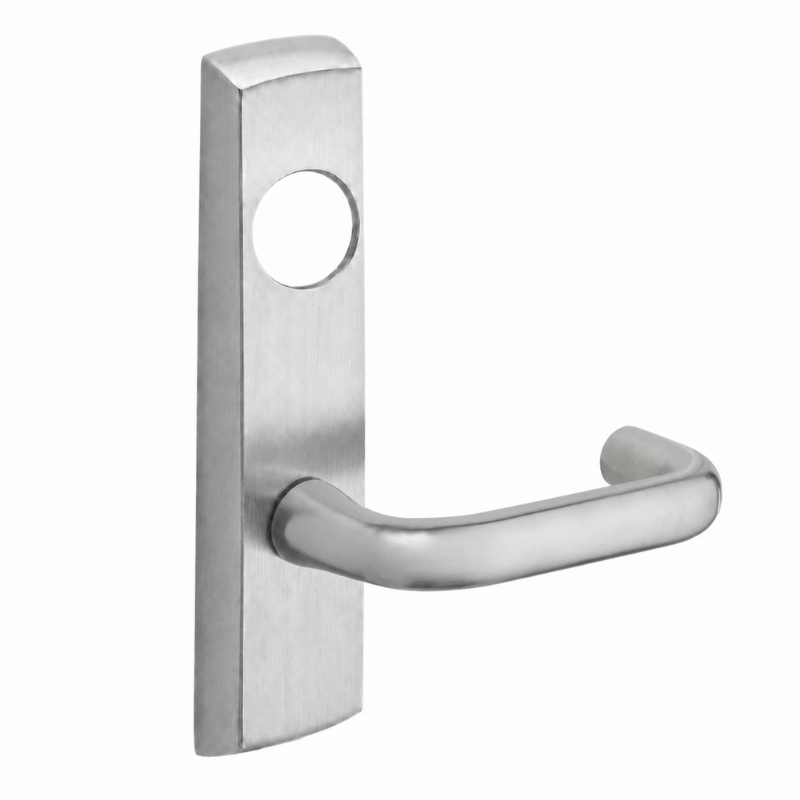

Sargent LC-P706-8-NEJ Narrow Stile Exit Device Lever Trim, J Lever, Storeroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P706-8-NEJ Narrow Stile Exit Device Lever Trim is designed to pair with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where a dependable exterior trim solution is needed. This J lever trim features a storeroom function that keeps the outside lever rigid, while key operation retracts the latch for controlled entry. Built for narrow stile door applications, the LC-P706-8-NEJ configuration is supplied less cylinder, making it a practical choice when cylinder compatibility or keying is specified separately. It is a precise trim option for Sargent exit device installations requiring secure access control and reliable day-to-day performance.

Features

• Sargent LC-P706-8-NEJ narrow stile exit device lever trim is made for narrow stile door applications.

• This trim uses a J lever design for a clean, functional grip style.

• The storeroom function provides controlled exterior access.

• Key operation retracts the latch for authorized entry.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• Supplied less cylinder for field-selected cylinder and keying requirements.

Functional Details

This storeroom function trim is intended for doors that require secure exterior access while maintaining free egress from the inside through the paired exit device. On this trim, the outside lever does not provide free entry; instead, authorized access is gained when the key retracts the latch. Because it is supplied less cylinder, the trim can be matched to the cylinder format and key system required for the opening.

• Outside lever rigid.

• Entry by key retracts latch.

Included Components

This trim is supplied as a Sargent narrow stile exit device lever trim assembly in the LC-P706-8-NEJ configuration. It is furnished less cylinder and is intended for use with compatible PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.
