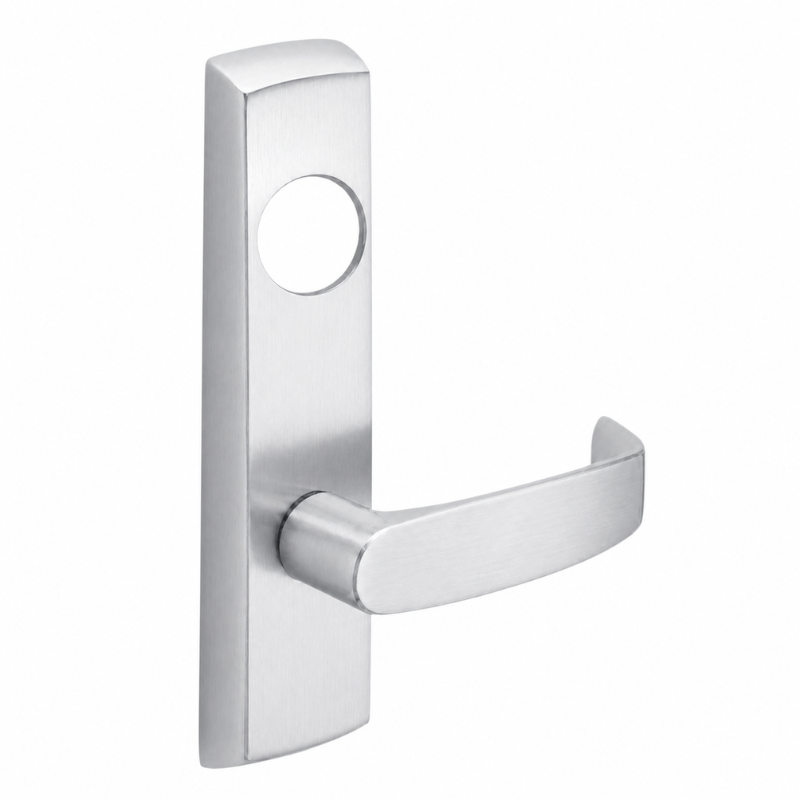

Sargent LC-P706-8-NEL Narrow Stile Exit Device Lever Trim, L Lever, Storeroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P706-8-NEL Narrow Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where a secure storeroom function is required. This trim features the L lever design and a key retracts latch operation that allows authorized entry while maintaining exterior security. Built for narrow stile door applications, the LC-P706-8-NEL configuration is supplied less cylinder, making it a practical choice when the cylinder is ordered separately or matched to an existing key system. It is a compatible trim solution for Sargent PE80 Series exit device installations.

Features

• Sargent LC-P706-8-NEL narrow stile exit device lever trim is made for narrow stile door applications.

• This trim includes the L lever design for compatible Sargent exit device setups.

• The storeroom function provides secure outside access control.

• Key retracts latch operation allows authorized entry from the exterior side.

• Designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• Supplied less cylinder for applications requiring separate cylinder selection or existing keying compatibility.

Functional Details

This storeroom function trim keeps the exterior side secured until an authorized key is used. In the LC-P706-8-NEL configuration, the key retracts the latch to permit entry, making it suitable for openings that need controlled access from the outside while maintaining free egress through the exit device.

• Entrance by trim when latch bolt is released by key. Key removable only when locked.

Included Components

The trim is supplied as a lever trim assembly less cylinder. Cylinder components are not included and must be ordered separately when required for the opening.
