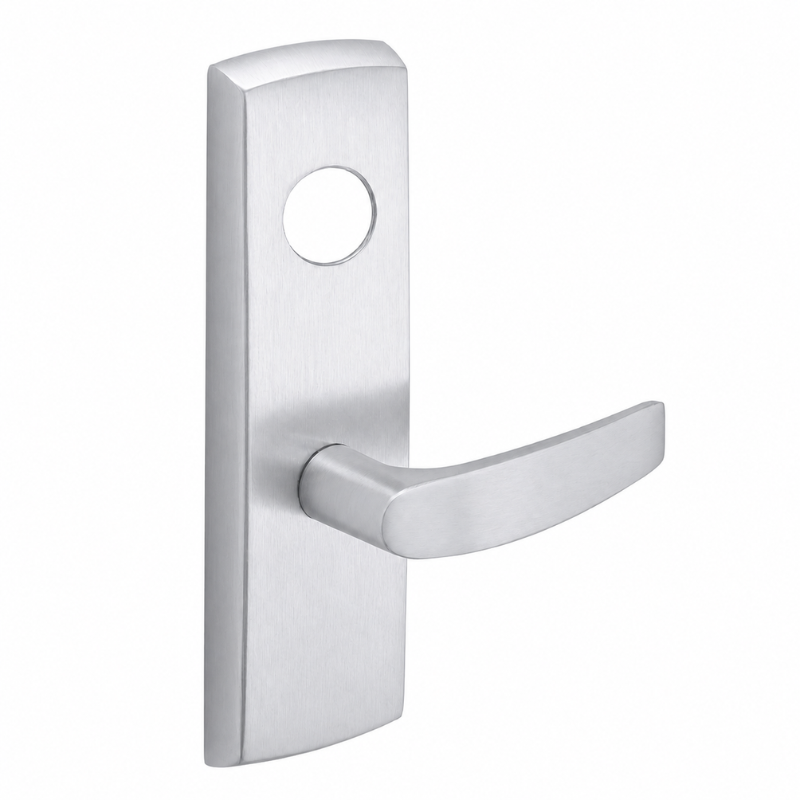

Sargent LC-P706-8-WEB Wide Stile Exit Device Lever Trim, B Lever, Storeroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P706-8-WEB Wide Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where dependable exterior access control is required. This trim features the B lever design and a storeroom function that keeps the outside lever rigid while allowing authorized entry by key retracts latch operation. Built as a wide stile exit device lever trim and supplied less cylinder, the LC-P706-8-WEB is a practical choice for commercial openings that need secure, keyed access with compatible Sargent PE80 Series exit device applications.

Features

• Sargent LC-P706-8-WEB wide stile exit device lever trim is made for compatible PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• The trim includes the B lever style for a consistent, functional grip design.

• Storeroom function keeps the outside lever rigid to help control entry from the exterior side.

• Key retracts latch operation allows authorized access by key.

• Supplied less cylinder so the cylinder can be specified separately to match the opening requirements.

• Wide stile trim configuration is suited for narrow and wide stile aluminum door applications supported by the series.

Functional Details

This storeroom function trim is intended for doors that require exterior access by key while maintaining secure outside operation the rest of the time. On this configuration, the outside lever does not provide free entry, and authorized access is achieved when the key retracts the latch through the exit device.

• Outside lever rigid.

• Entrance by key retracts latch.

Included Components

This Sargent LC-P706-8-WEB trim is supplied less cylinder. A cylinder is not included and must be ordered separately based on the keying and cylinder requirements of the opening.
