Description

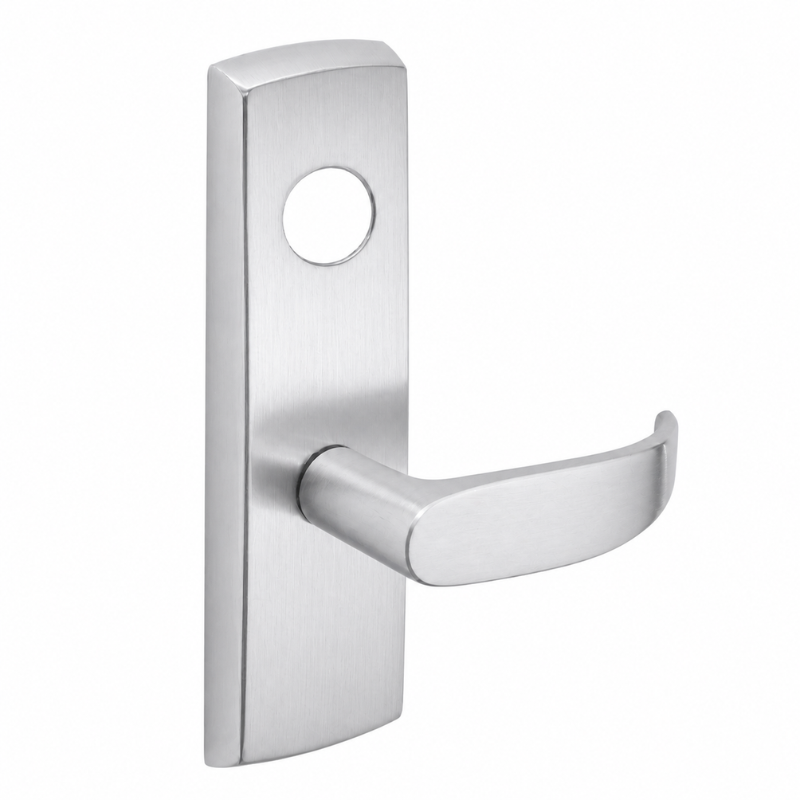

Sargent LC-P706-8-WEP Wide Stile Exit Device Lever Trim, P Lever, Storeroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder
The Sargent LC-P706-8-WEP Wide Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where secure exterior access is required. This trim features the P lever design and a storeroom function that keeps the outside lever rigid while allowing authorized entry when the key retracts the latch. Built for wide stile door applications, the LC-P706-8-WEP configuration is supplied less cylinder, making it a practical choice when cylinder compatibility or keying needs are being handled separately. It is part of Sargent’s PE80 Series exit device trim offering for commercial openings.
Features
- Sargent LC-P706-8-WEP wide stile exit device lever trim is made for compatible PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.
- The P lever design provides a familiar lever style for commercial door applications.
- Storeroom function keeps the exterior side secure while permitting keyed entry.
- Key retracts latch operation allows authorized access from the outside.
- Wide stile trim format is intended for doors requiring this mounting configuration.
- Supplied less cylinder for applications where the cylinder is provided separately.
Functional Details
This storeroom function trim is intended for doors that must remain secure from the outside while still allowing authorized keyed access. In this configuration, the outside lever does not provide free entry; instead, the key is used to retract the latch for access. This makes it suitable for controlled entry points paired with compatible Sargent PE80 Series exit devices.
- Key retracts latch.
- Outside lever is rigid.
Included Components
This Sargent LC-P706-8-WEP trim is supplied less cylinder. Cylinder and related keying components are not included and must be specified separately to complete the keyed storeroom function.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| Model | LC-P706-8-WEP |
| Product Type | Wide Stile Exit Device Lever Trim |
| Lever Design | P Lever |
| Function | Storeroom Function |
| Operation | Key Retracts Latch |
| Compatible Exit Device Series | PE8304 / PE8504 / PE8804 / PE8888 / PE8904 / PE9804 Series Exit Devices |
| Cylinder | Less Cylinder |
| SKU | LC-P706-8-WEP |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| ANSI Number | Type 1 |
| UL Listing Type | UL Listed for Panic Exit Hardware |
| BAA Qualified | No |
| Origin | USA |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Limited Warranty |
Technical Specifications
| Series | PE80 Series |
|---|---|
| Trim Model | LC-P706-8-WEP |
| Trim Type | Wide Stile Lever Trim |
| Lever Style | P Lever |
| Function Type | Storeroom |
| Outside Operation | Rigid Lever |
| Key Operation | Key Retracts Latch |
| Device Compatibility | PE8304, PE8504, PE8804, PE8888, PE8904, PE9804 |
| Cylinder Supplied | No, less cylinder |
| Door Application | Wide stile doors |
| ANSI/BHMA Standard | A156.3 |
| Grade | 1 |
| Listing | UL Listed |
| Warranty | 10 Years |
