Description

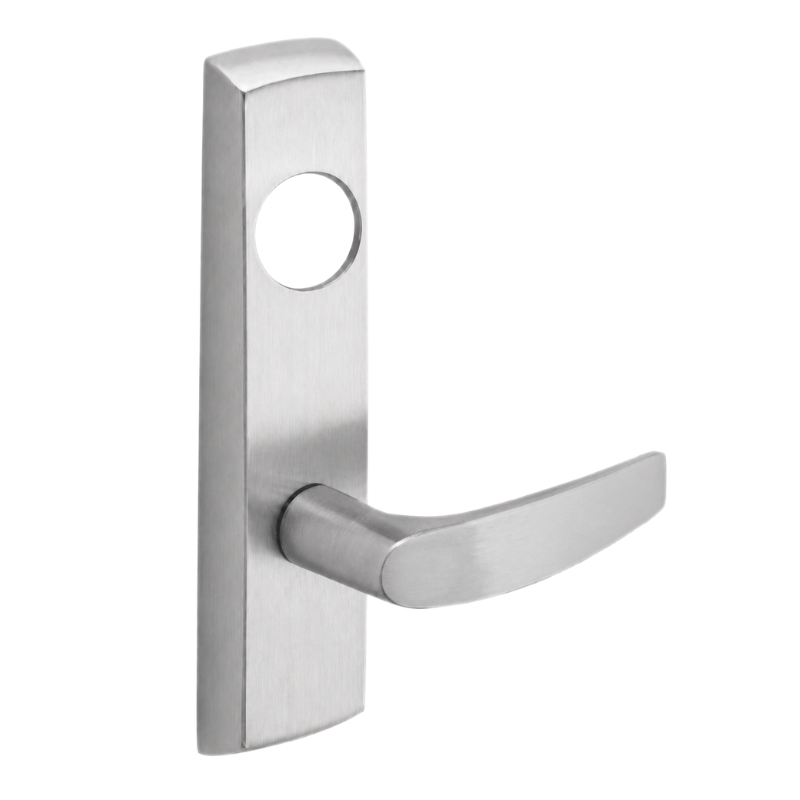

Sargent LC-P713-8-NEB Narrow Stile Exit Device Lever Trim, B Lever, Classroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder
The Sargent LC-P713-8-NEB Narrow Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where dependable classroom function is required. This B lever trim provides keyed control that retracts the latch from the outside, making it a practical choice for narrow stile door applications that need secure access management. Supplied less cylinder, the LC-P713-8-NEB allows you to match existing keying requirements while maintaining compatibility with Sargent PE80 Series exit device configurations.
Features
- Sargent LC-P713-8-NEB narrow stile exit device lever trim is made for compatible PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.
- The trim uses a B lever design for a streamlined operating grip on narrow stile openings.
- Classroom function provides controlled exterior access for schools, offices, and similar facilities.
- Key operation retracts the latch from the outside when authorized entry is needed.
- Supplied less cylinder so the opening can be keyed to existing facility requirements.
- This trim is intended for narrow stile applications where exit device compatibility and exterior lever control are required.
Functional Details
This classroom function lever trim keeps the outside lever secured until an authorized key is used to retract the latch. Because this LC-P713-8-NEB trim is supplied less cylinder, it gives facilities flexibility to install the appropriate cylinder and keying system for the opening while maintaining proper operation with the specified Sargent PE80 Series exit devices.
- Key retracts latch.
- For narrow stile applications.
- Less cylinder.
Included Components
The trim includes the Sargent LC-P713-8-NEB narrow stile exit device lever trim with B lever configuration for classroom function operation. Cylinder is not included.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| Model | LC-P713-8-NEB |
| Product Type | Narrow Stile Exit Device Lever Trim |
| Lever Design | B Lever |
| Function | Classroom Function |
| Operation | Key Retracts Latch |
| Compatible Exit Device Series | PE8304 / PE8504 / PE8804 / PE8888 / PE8904 / PE9804 Series Exit Devices |
| Cylinder | Less Cylinder |
| Application | For Narrow Stile Applications |
| SKU | LC-P713-8-NEB |
| Unit of Measure | Each |
| Origin | United States |
| BAA Qualified | Yes |
| Limited Warranty | 2 Year Limited Warranty |
| UL Listing Type | UL Listed when used with compatible listed exit devices |
Technical Specifications
| Series Compatibility | PE8304 / PE8504 / PE8804 / PE8888 / PE8904 / PE9804 |
|---|---|
| Trim Design | P713 Narrow Stile Lever Trim |
| Function Code | LC |
| Lever Type | B Lever |
| Device Type | Exit Device Trim |
| Application Type | Narrow Stile |
| Latch Operation | Key Retracts Latch |
| Cylinder Preparation | Less Cylinder |
| ANSI Number | As scheduled by device and trim configuration |
| Grade | As applicable to paired PE80 Series exit device listing |
| Door Control Interface | Exterior Lever Trim for Exit Device |
| Mounting Use | For PE80 Series compatible exit device applications |
| Catalog Series | PE80 Series |
| Handing | Field reversible per device application |
