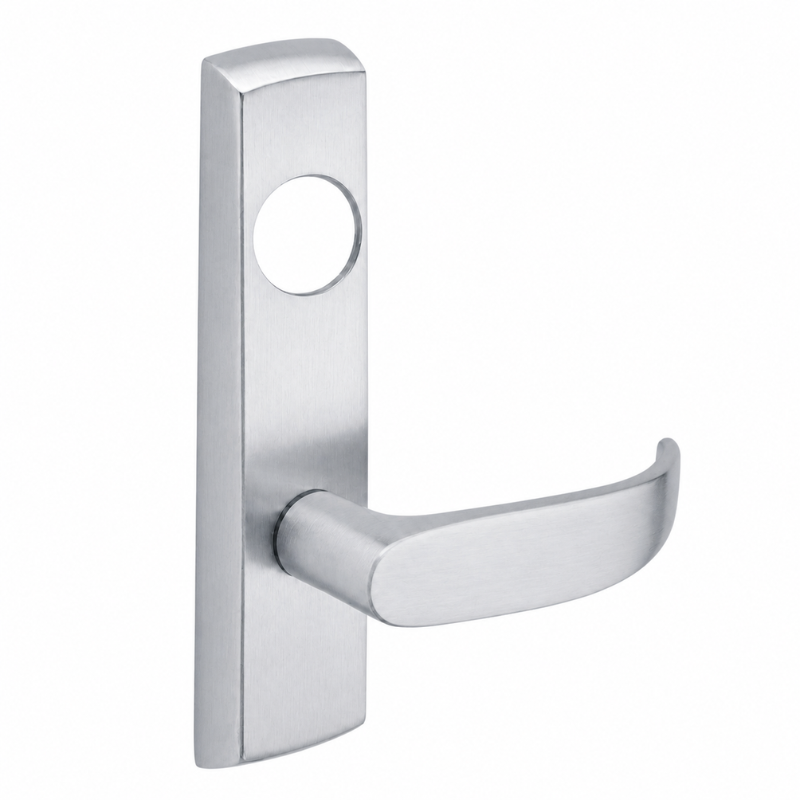

Sargent LC-P713-8-NEP Narrow Stile Exit Device Lever Trim, P Lever, Classroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P713-8-NEP Narrow Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices where a dependable classroom function trim is required. This P lever trim provides key retracts latch operation, allowing controlled exterior access while maintaining exit device performance on the inside. Built as a narrow stile exit device lever trim and supplied less cylinder, the Sargent LC-P713-8-NEP is a practical choice for aluminum storefront doors and other narrow stile applications that need compatible trim for PE80 Series exit devices.

Features

• Sargent LC-P713-8-NEP is a narrow stile exit device lever trim made for compatible PE80 Series exit devices.

• This model includes the P lever design for a clean, functional grip style.

• The classroom function allows key-controlled exterior operation.

• Key retracts latch operation provides authorized entry by retracting the latch from the outside.

• Designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• Supplied less cylinder, allowing the cylinder to be specified separately.

Functional Details

This classroom function lever trim is intended for openings that need controlled outside access with free egress from the inside. In this configuration, the key retracts the latch from the exterior side, making it well suited for schools, offices, and similar applications where access must be managed without affecting exit operation.

• Classroom function.

• Key retracts latch.

• Outside lever is rigid except when unlocked by key.

Included Components

This trim is supplied less cylinder. The lever trim is furnished for use with the specified Sargent PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices, and the cylinder must be ordered separately.
