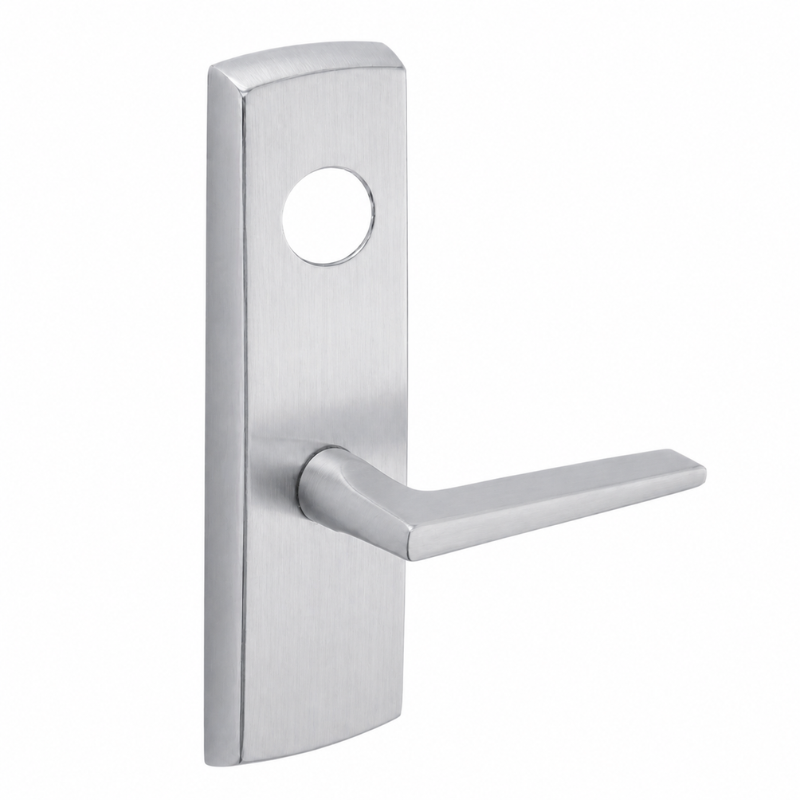

Sargent LC-P713-8-WEF Wide Stile Exit Device Lever Trim, F Lever, Classroom Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P713-8-WEF Wide Stile Exit Device Lever Trim is designed for use with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices, providing a dependable trim solution for wide stile door applications. This F lever trim features a classroom function that allows the key to retract the latch from the outside, making it well suited for controlled access points in commercial buildings. The LC-P713-8-WEF configuration is supplied less cylinder, allowing you to match existing keying systems while maintaining compatibility with Sargent PE80 Series exit device applications.

Features

• Sargent LC-P713-8-WEF lever trim is made for wide stile exit device applications.

• F lever design provides a familiar and practical operating style for commercial doors.

• Classroom function allows keyed exterior control for secure access management.

• Key retracts latch operation enables outside entry by key when needed.

• Compatible with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 Series exit devices.

• Supplied less cylinder for use with the appropriate cylinder ordered separately.

Functional Details

This classroom function trim is intended for openings where exterior access is controlled by key. In this configuration, the key retracts the latch from the outside while the trim is furnished less cylinder so the correct cylinder can be provided to suit the opening’s keying requirements.

• Classroom function, key retracts latch.

• Available with LN, LN Night Latch, EO, DT, ALK, SS, ET, DE and SD options.

• For use with PE8300, PE8400, PE8500, PE8600, PE8700, PE8800, PE8900 and PE9800 series exit devices.

Included Components

This trim is supplied as lever trim only and is furnished less cylinder. Cylinder and any finish-specific components should be ordered separately as required for the opening.
