Sargent NB-8710-F-84 Surface Vertical Rod Exit Device, Less Bottom, Exit Only, 84" Door Height, 33"-36" door width

  • SKU: NB8710F84US32DLHR
Sargent NB-8710-84-US32D
Sargent NB-8710-84-US10B
Sargent NB-8710-84-US32D
Sargent NB-8710-84-US10B
All SARGENT Products

Sargent NB-8710-F-84 Surface Vertical Rod Exit Device, Less Bottom, Exit Only, 84" Door Height, 33"-36" door width

  • SKU: NB8710F84US32DLHR
$2,294.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent NB-8710-F-84 Surface Vertical...
Quantity
–
+
From $2,294.00
Sargent 710-ETL Dummy Lever Trim Non ...
Quantity
–
+
From $731.00
Total

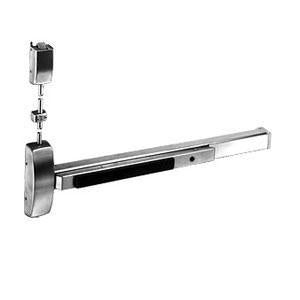

The Sargent NB-8710-84-F is a less bottom surface vertical rod exit device with no Outside Operation Exit Only for an 84" door height, high single-point top latching, a 33"-36" door width (F 36" long bar can be cut down to 32"), and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
 • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No

Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 36"
Hand Optional
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Minimum Stile Size 4 1/2" with Trim, 3 1/2" without Trim
Door Material Metal or Wood
Door Width 33" - 36"
Door Height 84 In.
Door Thickness 1 3/4" to 2 1/4"
Fire Rated No
Product Type Surface Vertical Rod Exit Devices


Product Cut Sheet

Panic Handing Chart
