Sargent NB-8710-G-84 Surface Vertical Rod Exit Device, Less Bottom, Exit Only, 84" Door Height, 43"-48" Door Width

SKU: NB8710G84US32DLHR

All SARGENT Products

Sargent NB-8710-G-84 Surface Vertical Rod Exit Device, Less Bottom, Exit Only, 84" Door Height, 43"-48" Door Width

SKU: NB8710G84US32DLHR

$2,202.00/ea

Available (1‑2 Weeks)

1-2 Weeks Lead Time

Choose your options

Finish - US32D Satin Stainless Steel (630)

Handing

Choose Your Product Options:

Your Local Church Name

Church Address - Pastor/Leader/Contact

Quantity:

Buy Complete Door Hardware Set

Finish - US32D Satin Stainless Steel (630)

US32D Satin Stainless Steel (630)
US10B Oxidized Dull Bronze (613)

Sargent NB-8710-G-84 Surface Vertical...

Finish:

Handing:

Variant

Quantity

–

+

$2,202.00

Finish - US26D Satin Chrome (626)

US26D Satin Chrome (626)
US10B Oxidized Dull Bronze (613)
US3 Bright Brass (605)

Sargent 710-ETL Exit Device, Dummy Le...

Finish:

Sargent Handing:

Variant

Quantity

–

+

$797.00

Total $2999.00

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Exit Only
Device Length	48"
Hand	Optional
Mechanical Options	Less Bottom Rod
Top Strike	646
Includes Trim	No
Minimum Stile Size	4 1/2" with Trim, 3 1/2" without Trim
Door Material	Metal or Wood
Door Width	43" - 48"
Door Height	84"
Door Thickness	1 3/4" to 2 1/4"
Fire Rated	No
Product Type	Surface Vertical Rod Exit Devices

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

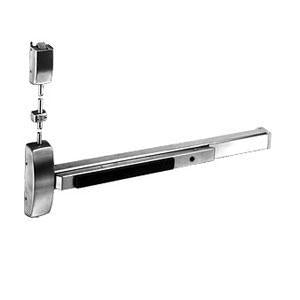

The Sargent NB-8710-84-G is a less bottom surface vertical rod exit device with no Outside Operation Exit Only. It has an 84" door height, single-point top latching for 43"-48" door widths rail (G 48" device length can be cut down to 43"), and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
