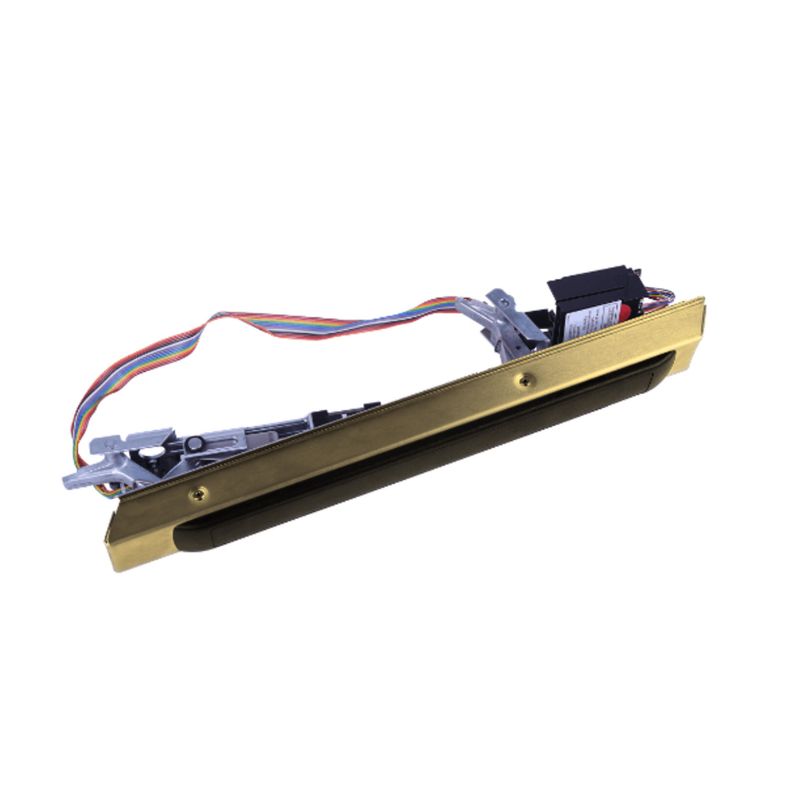

Sargent R56AE-US3 Electric Latch Retraction Push Rail Assembly Kit, 24-32" Device, Bright Brass

Technical Specs

Product Specs

Sargent R56AE-US3, Electric Latch Retraction Retrofit Motor Kit Part, Includes Push Rail Assembly Kit, E-Rail 24-32" Device, (Mfg After 1995), For 80 series Exit Device, US3-605 Bright Brass, More Details See Document Center

This is the Sargent R56AE-US3 Electric Latch Retraction Retrofit Motor Kit Part, designed for use with E-Rail devices measuring 24-32 inches and manufactured after 1995. It includes a push rail assembly and is compatible with 80 series exit devices. The finish is a professional and sophisticated US3-605 Bright Brass.

• Motor driven electric retraction for smooth precise operation.
• Retrofits standard mechanical rail.
• R56AE - for doors 24-32"
• Retrofit Kits can only be added to 80 Series exit devices manufactured after 1995
  & P series exit device. not available on FM8700 Series exit devices.
• Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
• Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
• Can be used for continuous and intermittent use.
• Power Requirements: 24VDC regulated/filtered power supply.
• Current draw: .6A during retraction and .25A maintained in dogged hold position.
• Requires 1A at 24VDC regulated/filtered power supply.

M56A Is compatible with:

• 8800 Series Rim Exit Devices
• 8900 Series Mortise Exit Devices
• 8700 Surface Vertical Rod Exit Devices
• 8600 Series Concealed Vertical Rod Exit Devices
• 8500 Narrow Design Rim Exit Devices
• 8300 Narrow Design Mortise Exit Devices
• 8400 Narrow Design Concealed Vertical Rod Exit Devices
