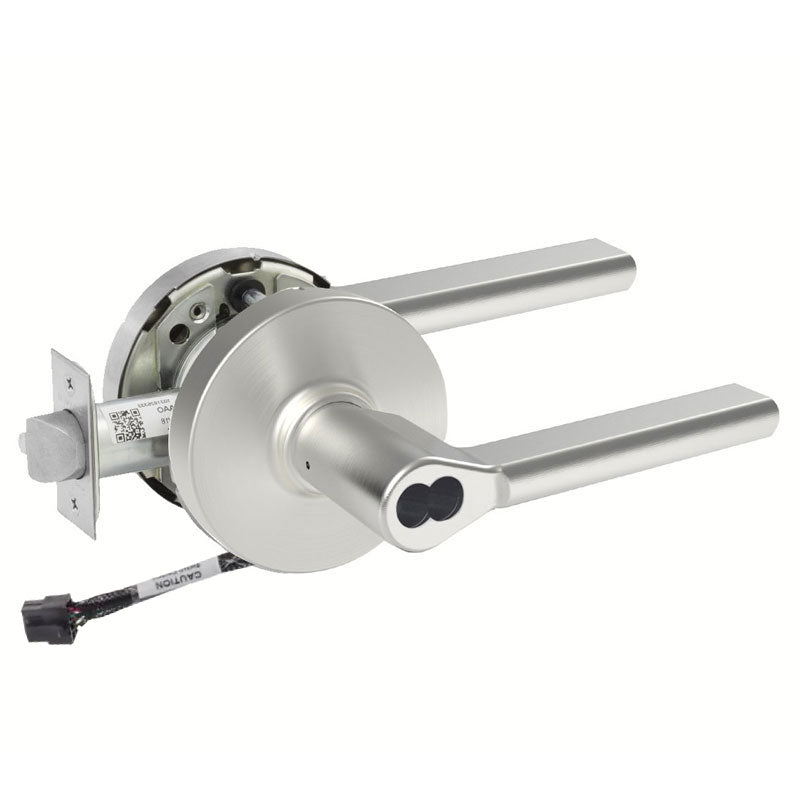

Sargent RX-70-10XG70-LMD Fail Safe Cylindrical Electromechanical Lock - Request to Exit, SFIC Less Core, L Rose, MD Lever, Grade 1

  • SKU: RX7010XG70LMDUS26D

Sargent RX-70-10XG70-LMD Fail Safe Cylindrical Electromechanical Lock - Request to Exit, SFIC Less Core, L Rose, MD Lever, Grade 1

  • SKU: RX7010XG70LMDUS26D
Sale price$1,143.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent RX-70-10XG70-LMD Fail Safe Cy...
Quantity
+
$1,143.00
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
+
$77.00
Total $1235.00

Technical Specs

Function 70-Electromechanical Fail Safe
Rose/Escutcheon Design L - Rose
Lever MD Lever
Cylinder Type SFIC
Hand Non Handed
Door Thickness 1-3/4" to 2"
Latch Number 10-3192
Latch Type Dead Latch (Guarded)
Latch Backset Dim 2-3/4"
Lock Face Size 2-1/4" X 1-1/8"
Bolt Projection 1/2"
Strike Number 808
Strike Type ASA
Strike Height 4-7/8"
Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Operating Voltage 12VDC
Amp Draw 500mA
Switch Type RX
Product Type Electric Cylindrical Lock

Product Specs

Manufacturer

Sargent

Grade

Grade 1

Origin

USA

Unit of Measure

Each

Base Material

Brass or Bronze

BAA Qualified

Yes

Limited Warranty

7 Years

Fire Rated

3 Hours {A}




Sargent RX-70-10XG70-LMD-SFIC Cylindrical Electromechanical Lever Lockset, Fail Safe, Request to Exit, SFIC Less Core, L Rose, B Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent RX-70-10XG70-LMD is a Cylindrical Electromechanical Lock with a Fail Safe Function, enabling the outside lever to unlock during a power failure and has a Request to Exit Feature. The 70 Option is 70 SFIC Small Format Interchangeable core, less core. It features an L-shaped rose, a MD-shaped lever, a 2-3/4" backset, and a 4-7/8" strike, and is available in voltage options of 12VDC or 24VDC. Sargent RX-70-10XG70-LMD Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG70 and 10XG70 Functions

Key Features:

  • 70 - Fail Safe Function
    - Power Off Unlocks Lever
    - Inside lever is always free
    - Latchbolt retracted by key outside when locked electrically
    - Guardbolt deadlocks latch bolt
  • For doors -1-3/4" thick adjusts to 2"
  • Backset-2-3/4"
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw

RX- Monitoring of Inside Lever

  • Patent Pending design
  • Non-Contact Switch
  • Bidirectional lever rotation
  • Non-handed design
  • The internal switch offers N/O & N/C
  • Modular wire harness with ElectroLynx ® 8-pin connector
  • Available functions: 04, 05, 15, 37, 70 & 71


10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.



Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems
