Technical Specs
| Function |
55 Office or Entry
|
| Lever/Knob Design |
MI - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type |
Less Cylinder |
| Hand |
Field Reversible |
| Door Thickness |
1 3/4" |
| Bolt Projection |
3/4" |
| Strike Number |
82-0110 |
| Strike Type |
ASA |
| Strike Height |
4 7/8" |
| Strike Width |
1 1/4" |
| Screws |
Combination |
| Power |
Hard Wired |
| Operating Voltage |
12VDC |
| Amp Draw |
500mA Peak, 15mA Holding |
| Switch Type |
RX |
| Product Type |
Electric Mortise Lock |
Product Specs
| Manufacturer |
Sargent |
| Grade |
Grade 1 |
| Installation |
— |
| Origin |
USA |
| Unit of Measure |
Each |
| BAA Qualified |
Yes |
| Limited Warranty |
2 Years |
| Fire Rated |
2 Hours {B} |

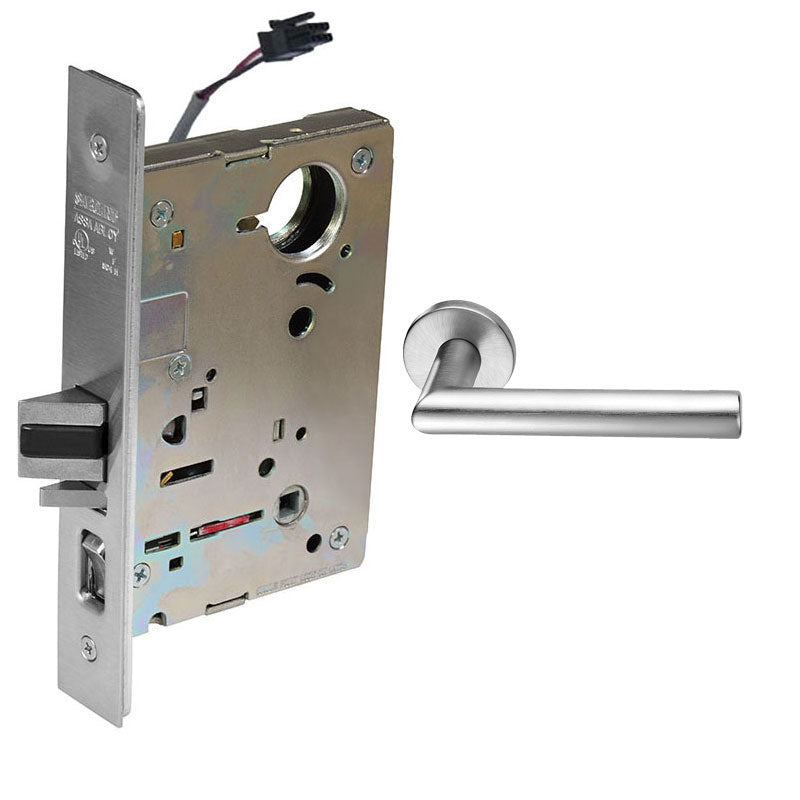

The Sargent RX-LC-8255-12V-LNMI electrified mortise lock features an Office or Entry function with a Request to Exit Switch, is 12V, has an LN Rose, MI Lever, and comes Less Cylinder, with an ASA Strike, and is Grade 1 Heavy Duty.
Office or Entry Function 55
- Key outside retracts latchbolt
- Trim inside always retracts latchbolt, outside trim remains locked
- Trim outside is locked & unlocked by the toggle only
- Auxiliary deadlatch
Sargent 8200 Series Overview
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing for additional resistance against vandalism and unauthorized entry.
The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim), and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
